Pico-ITX SBCs

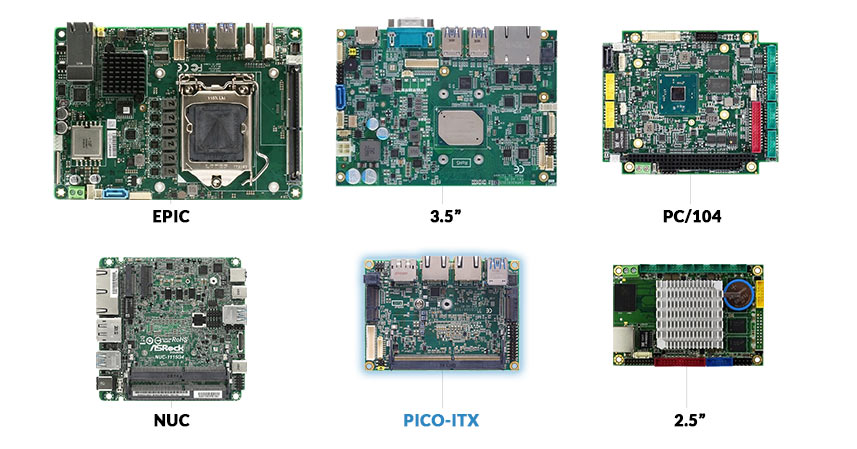

Why Pico-ITX is one of the most popular form factors

The Pico-ITX form factor is one of the most popular amongst system integrators and OEMs due to the sheer amount of features and performance squeezed into such a tiny footprint. With leading manufacturers like AAEON developing Pico-ITX SBCs featuring the latest Intel chipsets, doors are being opened to functionality and performance potential that product designers have struggled to achieve with past form factors of a similar footprint.

And size matters when it comes to Embedded Systems. The smaller the footprint of the single board computer, the smaller the parent device or machine can be, and on a factory floor, for instance, where space is at a premium, the less space a device takes up the better. In the past when it comes to SBC form factors, less normally meant less, or at least more specific functionality. With the Pico-ITX form factor bringing flexible functionality through common features, a multitude of I/O, and support for the latest, most powerful chipsets, less really does mean more for integrators and OEMs alike.

View Sort by
Showing 19 of 44 Pico-ITX SBCs
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Intel 11th Generation "Tiger Lake" Core i7/i5/i3 (Max 28W TDP)
  • Memory : LPDDR4x on-board up to 32GB
  • Display: 1x HDMI, 1x eDP
  • Ethernet: 1x 2.5GbE Intel i225, 1x GbE Intel i219
  • USB : 2x USB3.2 Gen 2 (Type-A), 2x USB3.2 Gen 1 (header), 4x USB2.0 (header)
PICO-TGU4
Pico-ITX SBC
Intel 11th Gen. Core i7/i5/i3/Celeron Pico-ITX SBC with HDMI/eDP, 1x 2.5GbE, 1x GbE, 8x USB, M.2 2280 M-key and full-siz...
  • Form Factor: Pico-ITX
  • CPU: Intel 11th Generation "Tiger Lake" ...
  • Memory: LPDDR4x on-board up to 32GB
  • Display: 1x HDMI, 1x eDP
  • Ethernet: 1x 2.5GbE Intel i225, 1x GbE I...
  • USB: 2x USB3.2 Gen 2 (Type-A), 2x USB3.2...
  • Storage: 1x SATA 6.0Gb/s (with 5V power)...
  • Serial: 2x RS-232/422/485
IN STOCK
OverviewThe PICO318 is powered by the Intel Pentium N4200 1.1GHz or Celeron N3350 1.1GHz processor. The PICO318 is a low power 2.5" embedded board that as an expandable and rugged design with feature-rich I/O to help facilitate quick deployment. The PICO318 is equipped with one 204-pin DDR3L-1867 SO-DIMM slot for up to 8GB system memory. Dual display capability is available through 18/24-bit single/dual cha...
PICO318
Pico-ITX SBC
Fanless Intel Pentium N4200 1.1GHz/Celeron N3350 1.1GHz Pico-ITX SBC with LVDS/Displayport, Dual Gigabit Ethernet and Mi...
  • Form factor: Pico-ITX
  • CPU family: Celeron N3350, Pentium N4200
  • Operating temperature: Wide
  • Fanless
  • Optional Heat Spreader: No
  • Display Output: DisplayPort, LVDS
  • RS-232 ports: 2
  • RS-422 ports: 1
IN STOCK
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Intel Atom x6000E Series, and Intel Pentium and Celeron N and J Series Processors
  • Chipset: SoC
  • Memory : up to 4GB LPDDR4x 4267 MHz on-board memory,
  • Display: 2x HDMI, 1x LVDS (optional)
  • Ethernet: 2x 10/100/1000BaseT (RJ45)
PICO-EHL4
Pico-ITX SBC
Intel Elkhart Lake Atom x6000 and Celeron Pico-ITX SBC with HDMI/LVDS, dual Gigabit Ethernet, 1x CAN, 4x USB, 2x COM, an...
  • Form Factor: Pico-ITX
  • CPU: Intel Atom x6000E Series, and Intel...
  • Chipset: SoC
  • Memory: up to 4GB LPDDR4x 4267 MHz on-bo...
  • Display: 2x HDMI, 1x LVDS (optional)
  • Ethernet: 2x 10/100/1000BaseT (RJ45)
  • USB: 2x USB3.2 Gen 2 (Type-A), 2x USB2.0...
  • Storage: 1x 32GB on-board eMMC, 1x SATAI...
IN STOCK
Quick specs
  • Form Factor: Pico-ITX
  • CPU: On-board Intel Atom x6000E processor (CPU TDP max. up to 12W)
  • Chipset: Intel integrated chipset
  • Memory : In-band ECC onboard LPDDR4x SO-DIMM, up to 8GB
  • Display: 1x HDMI, 1x LVDS
  • Ethernet: 2x 10/100/1000Mbps (RJ45)
OverviewImpulse can supply the MIO-2363 Pico-ITX single-board-computer along with our range of industrial motherboards, components and peripherals for fu...
MIO-2363
Pico-ITX SBC
Intel Elkhart Lake Atom x6000E Pico-ITX SBC with LVDS/HDMI, On-board in-band ECC LPDDR4x memory, 2x GbE, 2x USB3.2, 2x C...
  • Form Factor: Pico-ITX
  • CPU: On-board Intel Atom x6000E processo...
  • Chipset: Intel integrated chipset
  • Memory: In-band ECC onboard LPDDR4x SO-D...
  • Display: 1x HDMI, 1x LVDS
  • Ethernet: 2x 10/100/1000Mbps (RJ45)
  • USB: 2x USB3. (TYPE-A), 2x USB2.0 (Type-...
  • Storage: up to 128GB eMMC onboard, 1x M....
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Intel 11th Generation "Tiger Lake" Core i7/i5/i3 (Max 28W TDP)
  • Memory : up to 32GB on board LPDDR4x-4267
  • Display: 1x DP1.4 (rear I/O), 1x eDP (header)
  • Ethernet: 1x GbE Intel i219 (rear I/O), 1x GbE Intel i210 (rear I/O)
  • USB : 2x USB3.2 (Type-A), 2x USB2.0 (header)
OverviewImpulse can supply the long-life MIO-2375 Pico-ITX industrial motherboard fully configured and tested in our UK based engineering facility with y...
MIO-2375
Pico-ITX SBC
Intel 11th Gen. Core i7/i5/i3 Pico-ITX SBC with onboard LPDDR4x, eDP/DP, 2x Gigabit Ethernet, 4x USB, 2x COM and 5G M.2 ...
  • Form Factor: Pico-ITX
  • CPU: Intel 11th Generation "Tiger Lake" ...
  • Memory: up to 32GB on board LPDDR4x-4267
  • Display: 1x DP1.4 (rear I/O), 1x eDP (he...
  • Ethernet: 1x GbE Intel i219 (rear I/O), ...
  • USB: 2x USB3.2 (Type-A), 2x USB2.0 (head...
  • Storage: 1x SATA 6.0Gb/s
  • COM: 1x RS-232 (header), 1x RS-232/422/4...
OverviewThe PICO52R is an industrial, long-life Pico-ITX single-board computer (SBC) with a choice of on-board  8th Gen Intel Core i7/i5/i3 and Celeron Ultra-Low TDP embedded processors. A Single SO-DIMM socket is provided to support up to 16GB of DDR4-2400MHz system memory. Its efficient and robust cooling system design and compact form factor are aimed at space-limited applications as well as harsh indu...
PICO52R
Pico-ITX SBC
Intel 8th Gen. Core i7/i5/i3/Celeron Pico-ITX SBC with CPU, Displayport/HDMI/LVDS graphics, dual Gigabit Ethernet, 2x US...
  • Form factor: Pico-ITX
  • CPU family: 8th Gen Core
  • Operating temperature: Wide
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: DisplayPort, HDMI, LVDS
  • RS-232 ports: 2
  • RS-422 ports: 2
OverviewThe PICO-WHU4 is an industrial, long-life Pico-ITX single-board computer (SBC) with a choice of on-board  8th Gen Intel Core i7/i5/i3 and Celeron Ultra-Low TDP embedded processors. A Single SO-DIMM socket is provided to support up to 32GB of DDR4-2400MHz system memory. Furthermore, the PICO-WHU4 has a rich IO feature set comprised of dual Gigabit Ethernet, dual HDMI1.4b, two RS232/422/485, four USB and 4-bi...
PICO-WHU4
Pico-ITX SBC
Intel 8th Gen. Core i7/i5/i3 Pico-ITX SBC with dual HDMI graphics, dual Gigabit Ethernet 2x COM, 4x USB and M.2 expansio...
  • Form factor: Pico-ITX
  • CPU family: 8th Gen Core, Celeron 4305U
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: HDMI
  • RS-232 ports: 2
  • RS-422 ports: 2
  • RS-485 ports: 2
OverviewThe PICO511 is an industrial, long-life Pico-ITX single board computer (SBC) with a choice of on-board 7th Gen Intel Core i7/i5/i3 and Celeron embedded low power processors. A 200-pin SO-DIMM socket is provided to support up to 16GB of DDR4-2133MHz system memory. It's efficient and robust cooling system design and compact form factor is aimed at space-limited applications as well as harsh industrial ...
PICO511
Pico-ITX SBC
Intel 7th Gen. Core i7/i5/i3/Celeron SoC Pico-ITX SBC with LVDS graphics, Gigabit Ethernet and 2x mPCIe expansion slots
  • Form factor: Pico-ITX
  • CPU family: 7th Gen Core, Celeron 3965U
  • Operating temperature: Extended
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: LVDS
  • I²C bus: Yes
  • Expansion: Any, MiniPCIe, PCIe
OverviewThe PICO512 is an industrial, long-life Pico-ITX single board computer (SBC) with a choice of on-board 7th Gen Intel Core i7/i5/i3 and Celeron embedded low power processors. A 200-pin SO-DIMM socket is provided to support up to 16GB of DDR4-2133MHz system memory. Its efficient and robust cooling system design and compact form factor is aimed at space-limited applications as well as harsh industrial envir...
PICO512
Pico-ITX SBC
Intel 7th Gen. Core i7/i5/i3/Celeron SoC Pico-ITX SBC with HDMI/LVDS graphics, Gigabit Ethernet, mPCIe expansion with mS...
  • Form factor: Pico-ITX
  • CPU family: 7th Gen Core, Celeron 3965U
  • Operating temperature: Extended
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: HDMI, LVDS
  • I²C bus: Yes
  • Expansion: Any, MiniPCIe, PCIe
OverviewThe PICO51R is an industrial, long-life Pico-ITX single board computer (SBC) with a choice of on-board 7th Gen Intel Core i7/i5/i3 and Celeron embedded low power processors. A 200-pin SO-DIMM socket is provided to support up to 8GB of DDR4-2133MHz system memory. Its efficient and robust cooling system design and compact form factor is aimed at space-limited applications as well as harsh industrial enviro...
PICO51R
Pico-ITX SBC
Intel 7th Gen. Core i7/i5/i3/Celeron Pico-ITX SBC with Displayport/LVDS graphics, dual Gigabit Ethernet, 2x USB3.0, 2x U...
  • Form factor: Pico-ITX
  • CPU family: 7th Gen Core, Celeron 3965U
  • Operating temperature: Extended
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: DisplayPort, LVDS
  • RS-232 ports: 2
  • RS-422 ports: 2
OverviewTailored for the IIOT machine vision market, the agile and flexible PICO-KBU4 is a palm-sized single board computer that provides a customizable BIO interface and offers an expanded connectivity capacity of two Gigabit LAN ports. The PICO-KBU4 is ruggedly resilient, operating within a thermal range of 0°C ~ 60°C, a feature which is further optimized by the solder-side CPU, providing maximum airflow ...
PICO-KBU4
Pico-ITX SBC
Intel 7th Gen. Core i7/i5/i3 Pico-ITX SBC with CPU, HDMI/LVDS graphics, dual Gigabit Ethernet and M.2 expansion
  • Form factor: Pico-ITX
  • CPU family: 7th Gen Core
  • Operating temperature: Standard
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: HDMI, LVDS
  • RS-232 ports: 2
  • RS-422 ports: 1
OverviewThe PICO500, an extremely compact Pico-ITX embedded board, supports the latest 14nm 6th generation Intel Core i7/i5/i3 processors (Skylake). The tiny PICO500 is equipped with one DDR4 SO-DIMM with up to 16GB memory capacity. Integrated with Intel HD graphics engine, the Pico-ITX motherboard supports HDMI and 18/24-bit dual channel LVDS that delivers a whole new level of Ultra HD 4K visual experiences. ...
PICO500
Pico-ITX SBC
Intel 6th Gen. Core i7/i5/i3/Celeron SoC Pico-ITX SBC with HDMI/LVDS graphics, Gigabit Ethernet and wide operating tempe...
  • Form factor: Pico-ITX
  • CPU family: 6th Gen Core, Celeron 3955U
  • Operating temperature: Extended
  • Fanless
  • Optional Heat Spreader: Yes
  • Display Output: HDMI, LVDS
  • Expansion: Any, MiniPCIe, PCIe
  • Suitable for: Machine Building
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Intel Atom Processor E3900 Series (Max TDP 12W)
  • Memory : 1x 204-pin DDR3L 1866Mhz SODIMM up to 8GB
  • Display: 1x Mini DisplayPort, 1x LVDS, 1x VGA
  • Ethernet: 2x 10/100/1000Mbps (RJ45)
  • USB : 2x USB3.1 (TYPE-A), 2x USB2.0 (Header)
OverviewThe AL051 from DFI is an Intel Atom E3900 Pico-ITX 2.5" Single Board Computer (SBC) that combines compact design with robust performance. Enginee...
AL051
Pico-ITX SBC
Intel Atom E3900 Pico-ITX 2.5" SBC with mini DisplayPort, 1x Gigabit Ethernet, 2x USB3.1, 1x RS-232/422/485 port and 12V...
  • Form Factor: Pico-ITX
  • CPU: Intel Atom Processor E3900 Series (...
  • Memory: 1x 204-pin DDR3L 1866Mhz SODIMM ...
  • Display: 1x Mini DisplayPort, 1x LVDS, 1...
  • Ethernet: 2x 10/100/1000Mbps (RJ45)
  • USB: 2x USB3.1 (TYPE-A), 2x USB2.0 (Head...
  • Storage: 1x SATAIII, M.2 2242 B-key (PCI...
  • COM: 1x RS-232/422/485 (Header)
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Intel Atom Processor E3900 Series (Max TDP 12W)
  • Memory : up to 8GB DDR3L 1866 onboard
  • Display: 1x Mini DP, 1x LVDS
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB : 2x USB3.1 (Type-A), 2x USB 2.0 (Header)
OverviewImpulse can supply the AL053 embedded board fully configured and tested in our UK engineering facility with your choice of memory, storage and OS. We ...
AL053
Pico-ITX SBC
Intel Atom E3900 Pico-ITX 2.5" SBC with mini DisplayPort, 1x Gigabit Ethernet, 2x USB3.1, 1x RS-232/422/485 port and wid...
  • Form Factor: Pico-ITX
  • CPU: Intel Atom Processor E3900 Series (...
  • Memory: up to 8GB DDR3L 1866 onboard
  • Display: 1x Mini DP, 1x LVDS
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB: 2x USB3.1 (Type-A), 2x USB 2.0 (Hea...
  • Storage: M.2 2242 B-key (PCIe/USB 2.0/SA...
  • COM: 1x RS-232/422/485 (Header)
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Intel Atom X5-E3900 / Intel Celeron N3350 (Max. TDP 9W)
  • Memory : Onboard 2GB DDR3L
  • Display: 1x Mini DisplayPort
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB : 2x USB3.0(Type-A), 2x USB2.0 (Header)
OverviewThe AL05P is a Pico-ITX Single Board Computer (SBC) from DFI, designed to elevate your embedded computing experience. Powered by the Intel Atom E3900 ...
AL05P
Pico-ITX SBC
Intel Atom E3900/ Celeron N3350 Pico-ITX SBC with 2GB DDR3, 32GB eMMC, Mini DP, 1x Gigabit Ethernet, 4x USB and 48V DC P...
  • Form Factor: Pico-ITX
  • CPU: Intel Atom X5-E3900 / Intel Celeron...
  • Memory: Onboard 2GB DDR3L
  • Display: 1x Mini DisplayPort
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB: 2x USB3.0(Type-A), 2x USB2.0 (Heade...
  • Storage: 32GB eMMC
  • COM: 1x RS-232/422/485 (Header)
Quick specs
  • Form Factor: Pico ITX
  • CPU: Intel Atom x5 E8000/ Intel Celeron 3000 up to 6W TDP
  • Memory : 1x 204-pin DDR3L SO-DIMM, up to 8GB
  • Display: 1x LVDS, 1x VGA or 1x HDMI
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB : 2x USB3.0(TYPE-A), 2x USB2.0 (Header)
OverviewImpulse can supply the BW051 embedded board fully configured and tested in our UK engineering facility with your choice of memory, storage, and OS. We...
BW051
Pico-ITX SBC
Intel Atom x5 E8000/ Celeron 3000 Pico-ITX SBC with up to 8GB DDR3, dual display support, 1x Gigabit Ethernet, 2x COM, 4...
  • Form Factor: Pico ITX
  • CPU: Intel Atom x5 E8000/ Intel Celeron ...
  • Memory: 1x 204-pin DDR3L SO-DIMM, up to ...
  • Display: 1x LVDS, 1x VGA or 1x HDMI
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB: 2x USB3.0(TYPE-A), 2x USB2.0 (Heade...
  • Storage: 1x SATAIII, 1x half-size mSATA
  • COM: 1x RS-232/422/485 (Header), 1x RS-2...
Quick specs
  • CPU: Intel Atom x6425RE 1.90GHz Quad-Core Processor (12W TDP)
  • System Memory: 1x 260-pin DDR4-3200 SO-DIMM, up to 32GB
  • COM: 4x RS-232/422/485 (DB9)
  • USB: 2x USB3.1, 2x USB2.0 (Type-A)
  • Ethernet: 1x 10/100/1000/2500Mbps, 1x 10/100/1000Mbps (RJ45)
  • Power Over Ethernet (PoE): N/A
OverviewImpulse can supply the EPBC-1000 embedded single-board computer fully configured in our UK-based engineering facility with industrial-grade memor...
EPBC-1000
Pico-ITX SBC
Intel Elkhart Lake Atom x6211E Pico-ITX Embedded Single Board Computer with DP, 2x GbE, 3x USB, 2x COM, M.2 2280 M-key a...
  • CPU: Intel Atom x6425RE 1.90GHz Quad-Cor...
  • System Memory: 1x 260-pin DDR4-3200 SO-D...
  • COM: 4x RS-232/422/485 (DB9)
  • USB: 2x USB3.1, 2x USB2.0 (Type-A)
  • Ethernet: 1x 10/100/1000/2500Mbps, 1x 10...
  • Power Over Ethernet (PoE): N/A
  • Display: 1x DisplayPort, 1x DVI-I
  • Digital I/O: N/A
Features
  • Long-lifetime, fanless 2.5" Pico-ITX single board computer (SBC)
  • NXP i.MX 8M series RISC processor
  • Single channel LPDDR4 3200MHz memory up to 4GB
  • Onboard 16GB eMMC storage
  • Single display support : HDMI/LVDS
  • HDMI resolution up to 4096x2160 @60Hz
M8M051
Pico-ITX SBC
NXP i.MX 8M Cortex-A53 1.5GHz Pico-ITX SBC with up to 4GB LPDDR4, 16GB eMMC, dual display, Gigabit Ethernet, one USB3.0 ...
  • Form factor: Pico-ITX
  • CPU family: NXP i.MX 8M Cortex-A53
  • Operating temperature: Standard
  • Fanless
  • Optional Heat Spreader: No
  • Display Output: HDMI, LVDS
  • RS-232 ports: 3
  • RS-422 ports: 1
Quick specs
  • Form Factor: Pico-ITX
  • CPU: Optional dual or quad core ARM Cortex A53 @ 1.5GHz
  • Memory : up to 4GB LPDDR4 onboard
  • Display: 1x HDMI, 1x LVDS
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB : 2x USB3.1 Gen1 (TYPE-A), 2x USB2.0 (2mm pitch),
OverviewImpulse can supply the M8M051 embedded board fully configured and tested in our UK engineering facility with your choice of memory, storage and OS. We...
M8M051
Pico-ITX SBC
i.MX 8M Cortex-A53 1.5GHz 2.5" SBC with up to 4GB LPDDR4, 16GB eMMC, HDMI/LVDS, 1x Gigabit Ethernet, 4x USB, 8x DIO, 2x ...
  • Form Factor: Pico-ITX
  • CPU: Optional dual or quad core ARM Cort...
  • Memory: up to 4GB LPDDR4 onboard
  • Display: 1x HDMI, 1x LVDS
  • Ethernet: 1x 10/100/1000Mbps (RJ45)
  • USB: 2x USB3.1 Gen1 (TYPE-A), 2x USB2.0 ...
  • Storage: 16GB eMMC, 1x micro SD slot
  • COM: 1x RS-232 (2mm pitch), 1x RS-232/42...
View all Pico-ITX SBCs
PICO-ITX Single Board Computer with Tiger Lake performance
The PICO-TGU4 is one of the first PICO-ITX Single Board Computers (SBC) to feature the Intel 11th Generation "Tiger Lake" U processor, and now in mass-production it is set to revolutionise the world of Edge AI and machine vision by delivering superior CPU processing and GPU power in a tiny form factor.
Read now
Choosing an embedded single board computer
For product and project managers who own their entire product lifecycle, an Embedded Single Board Computer is just one element, albeit a critical one, in the world of spinning plates that is bringing an electronic product to life.
Read now
In a rush? Let us do the leg work.
Enquiry information
Your name
Company name
Email address
Telephone
+44(0)1782 337 800
Celebrating 30 years in business. 1993-2023. Thank you for your support!
C-Tecnics
The support received from Impulse on new solutions is greatly appreciated and highly recommended.
...
Sep 2021
+44(0)1782 337 800
