AIB-MN42

AIB-MN42-1-A1

JETSON ORIN NX CARRIER BOARD KIT

AIB-MN42 - NVIDIA Jetson Orin NX Module and Carrier Board Kit with 16GB LPDDR5, 128GB SSD, HDMI, 1x GbE, 2x USB, 1x RS-232, 1x Isolated CAN ports and wide -25°C to 80°C operating temperature

CE

CE is a mandatory standard for products on the market in the European Economic Area. By CE marking a product, the manufacturer ensures that the item meets the essential safety requirements set out in the applicable CE directive.

RoHS

This product fully adheres to the Restriction of Hazardous Substances Directive 2002/95/EC, RoHS for short.  The directive covers the restriction of use of certain hazardous substances in electrical and electronic equipment and was adopted in February 2003 by the European Union.

FCC Approved

The Federal Communications Commission (FCC) is an independent agency of the United States government that sets standards and governs the testing of conducted and radiated emissions such as EMI.

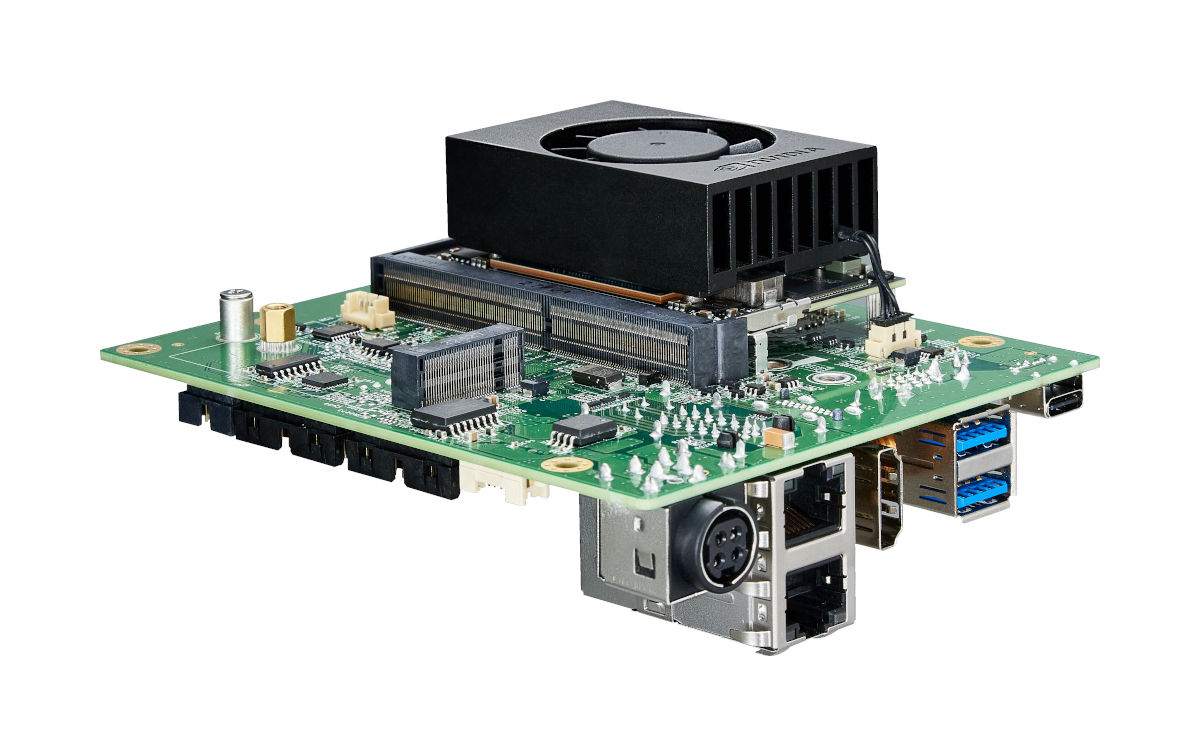

AIB-MN42 Jetson Orin NX Carrier Board Kit
AIB-MN42 rear IOAIB-MN42 carrier board topAIB-MN42 carrier board base

Request a quote for this product

Enquiry information
Your name
Company name
Email address
Telephone

Add to quote list

Add the AIB-MN42 to your quote list to send to our sales team for a quote on all your chosen products
Product
Availability
AIB-MN42-1-A1

NVIDIA Jetson Orin NX Module and Carrier Board Kit with 16GB LPDDR5, 128GB SSD, HDMI, 1x GbE, 2x USB, 1x RS-232, 1x Isolated CAN ports and wide -25°C to 80°C operating temperature

1 in stock
Next day delivery i
* Lead time is indicative and is subject to change at time of ordering. Next business day delivery on in-stock products only (when ordered before 3pm).
** Contact us for quantity or project pricing.
† Additional delivery charge may be incurred for certain postcodes (calculated at checkout)
Industry insight.
Embedded know-how.
Impulse engineers and specialists have the industry insight and embedded know-how to design, build and configure outstanding solutions for wide-ranging needs.
Discover our Embedded Systems capabilities

AIB-MN42 overview

Specification
Description
Downloads
Module
NVIDIA Jetson Orin NX
GPU
1024-core NVIDIA Ampere, with 32 Tensor cores
CPU
8-core Arm Cortex-A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
Memory
16GB 128-bit LPDDR5
Ethernet
2x 10/100/1000Mbps (RJ45)
USB
2x USB3.2 (Type-A), 1x OTG (Type-C)
COM
1x RS-232, 1x RS-422/485, 1x isolated CANbus
Display
1x HDMI
Storage
1x M.2 M-Key 2242 (128GB built-in)
Digital I/O
5x GPIO
Camera
1x 8-Lane MIPI Expansion Connector (120 Pin)
Expansion
1x M.2 3042/3052 (USB3.2), 1x M.2 E-Key 2230 (PCIe/USB 2.0), 1x SIM
Operating Temperature
-25°C to +80°C
Power
12V to 24V DC (4-pin Din)
Dimensions (W x L)
87.4mm x 67.4mm x 28.45mm
Market Certifications
CE, FCC, RoHS
The Aetina AIB-MN42 is a Jetson Orin NX Carrier Board Kit that elevates edge AI computing to new heights. The kit is designed to integrate with the powerful NVIDIA Jetson Orin NX Module, providing enhanced performance for a wide range of AI applications.

With a robust configuration featuring 16GB LPDDR5 and a spacious 128GB SSD, the AIB-MN42 allows for smooth and efficient operation. It includes HDMI, 1x GbE, and 2x USB ports for enhanced connectivity, and the RS-232 port and an isolated CAN port further expand its communication capabilities. Engineered for reliability in demanding environments, the AIB-MN42 features a wide operating temperature range of -25°C to 80°C, ensuring optimal performance in challenging conditions which makes it ideal for applications where temperature variations are a concern.

Its compatibility with the NVIDIA Jetson Orin NX Module allows for AI processing, making it suitable for applications such as robotics, smart surveillance, and autonomous systems. The Aetina AIB-MN42 Jetson Orin NX Carrier Board Kit provides a comprehensive solution, combining robust hardware, connectivity options, and a wide operating temperature range to meet the demands of diverse AI applications.
