MIC-711-ON

MIC-711-ON2A1MIC-711-ON3A1

JETSON ORIN NANO AI EDGE COMPUTER

MIC-711-ON - NVIDIA Jetson Orin Nano AI Inference Embedded PC with HDMI, up to 16GB LPDDR5 memory, 1x Gigabit Ethernet,3x USB, mini PCIe and M.2 expansion slots

CE

CE is a mandatory standard for products on the market in the European Economic Area. By CE marking a product, the manufacturer ensures that the item meets the essential safety requirements set out in the applicable CE directive.

RoHS

This product fully adheres to the Restriction of Hazardous Substances Directive 2002/95/EC, RoHS for short.  The directive covers the restriction of use of certain hazardous substances in electrical and electronic equipment and was adopted in February 2003 by the European Union.

Fanless

These products use heatsink, heatpipe and extrusion technology to dissipate the heat generated by the system rather than using traditional fans thus improving system reliability and longevity.

Linux

This product supports Linux based kernels. See product datasheet and manual for a list of compatible Linux kernels and distributions (for development and pre-sales support please contact our technical sales team).

Wide Voltage

These devices and systems have been designed to accept a wide voltage DC power input. This feature is desirable in the industrial market where a fixed voltage level or mains AC power cannot be guaranteed.

FCC Approved

The Federal Communications Commission (FCC) is an independent agency of the United States government that sets standards and governs the testing of conducted and radiated emissions such as EMI.

Wide Temperature

These products utilise high quality industrial grade components enabling them to work in wide temperature environments. They are capable of running as low as -20C and as high as +70C.

MiniPCI Express

This system features one or more miniPCI Express (mPCIe) slots for board level expansion.

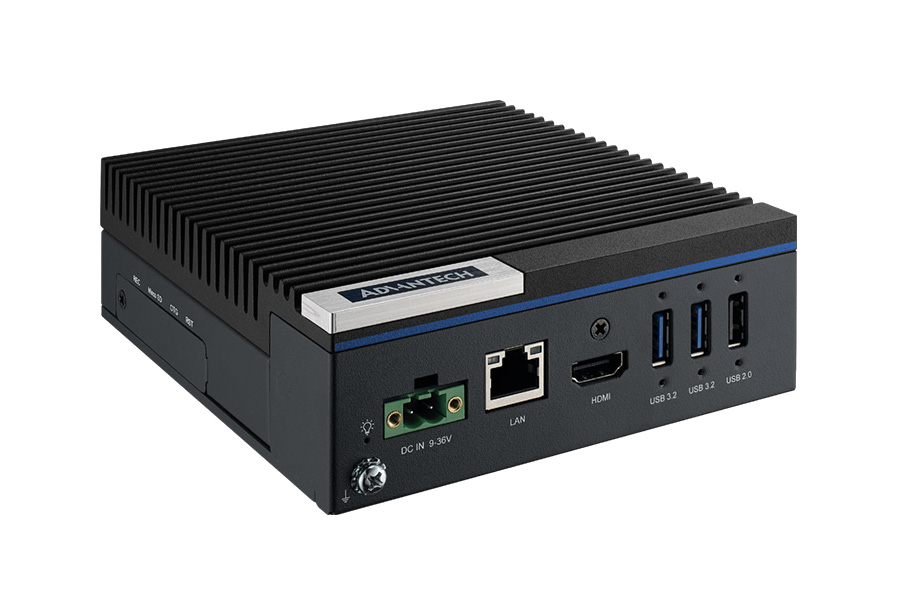

MIC-711-ON Jetson Orin Nano AI Edge Computer
MIC-711-ON with idoor expansion moduleMIC-711-ON front i/o

Request a quote for this product

Enquiry information
Your name
Company name
Email address
Telephone

Add to quote list

Add the MIC-711-ON to your quote list to send to our sales team for a quote on all your chosen products
Product
Availability
MIC-711-ON2A1

MIC-711-ON with NVIDIA Jetson Orin Nano 4GB

MIC-711-ON3A1

MIC-711-ON with NVIDIA Jetson Orin Nano 8GB

Product
Availability
* Lead time is indicative and is subject to change at time of ordering. Next business day delivery on in-stock products only (when ordered before 3pm).
** Contact us for quantity or project pricing.
† Additional delivery charge may be incurred for certain postcodes (calculated at checkout)
Fully Integrated Box PC Systems

Need an Integrated System?

With literally hundreds of options in our product toolkit, configuring and customising the perfect embedded platform has never been easier. Give us a brief and our Design Engineers will pull together a solution using their Industry Insight and Technology Know-how. We'll talk you through the options, understand your application, then put forward a bespoke proposal for you within your desired timeframe.

Learn more

MIC-711-ON overview

Specification
Description
Downloads
CPU
NVIDIA Jetson Orin Nano with Ampere GPU upto 1024 NVIDIA CUDA cores and 32 Tensor cores
System Memory
up to 8GB LPDDR5
COM
N/A
USB
2x USB3.0 (TYPE-A), 1x USB2.0 (TYPE-A), 1x USB2.0 (Header)
Ethernet
1x 10/100/1000Mbps (RJ45)
Power Over Ethernet (PoE)
N/A
Display
1x HDMI
Digital I/O
N/A
Audio
N/A
Storage
1x M.2 2280 M-key (NVMe PCIe x4), 1x Micro SD slot
Expansion
1x Mini PCIe (PCIe/USB2.0) 1x M.2 3052 B-key (USB), 2x Nano SIM slots
Power Supply
9V to 36V DC (Terminal Block)
Remote Ctrl & Status Output
N/A
Dimensions (W x D x H)
130mm 130mm x 46mm
Weight (net/gross)
1.2kg
Operating Temperature
Market Certifications
CE, FCC, RoHS
OS Support
Jetpack 5.1 or better
Mounting
Wall mount kit

Advantech's fanless and ultra-compact MIC-711-ON is equipped with NVIDIA Jetson Orin Nano delivering up to 40 TOPS, features extensive connectivity options, including 1x GbE, 2x USB 3.2 Gen 1 ports, and versatile expansion possibilities with 1x mPCIe, 1x M.2 3052, and 1x M.2 2280 slots, all while supporting Allxon 24/7 remote monitoring and OTA deployment services.

For more information about the MIC-711-ON Jetson Orin Nano AI edge computer please contact our technical sales team at +44 (0)1782 337 800 or alternatively submit an enquiry.



Features
  • Fanless and ultra-compact design
  • NVIDIA® Jetson Orin™ NX embedded
  • 1x GbE LAN
  • 1x USB2.0, 2x USB3.0
  • 1x M.2 2280 M-key for NVMe storage
  • 1x M.2 3052 B-key for wireless module
  • Linux OS with board support package (BSP)
  • Supports a wide operating temperature ranges
