M2AI-2242-520

PER-T520-M2AI-A10-0421

KNERON KL520 M2 2242 MODULE

M2AI-2242-520 - Kneron KL520 NPU AI Edge M.2 2242 Module

CE

CE is a mandatory standard for products on the market in the European Economic Area. By CE marking a product, the manufacturer ensures that the item meets the essential safety requirements set out in the applicable CE directive.

FCC Approved

The Federal Communications Commission (FCC) is an independent agency of the United States government that sets standards and governs the testing of conducted and radiated emissions such as EMI.

M.2

M.2, formerly known as the Next Generation Form Factor (NGFF), is a specification for internally mounted computer expansion cards and associated connectors. M.2 replaces the mSATA standard, which uses the PCI Express Mini Card physical card layout and connectors. Employing a more flexible physical specification, the M.2 allows different module widths and lengths, and, paired with the availability of more advanced interfacing features, makes the M.2 more suitable than mSATA in general for solid-state storage applications

RoHS

This product fully adheres to the Restriction of Hazardous Substances Directive 2002/95/EC, RoHS for short.  The directive covers the restriction of use of certain hazardous substances in electrical and electronic equipment and was adopted in February 2003 by the European Union.

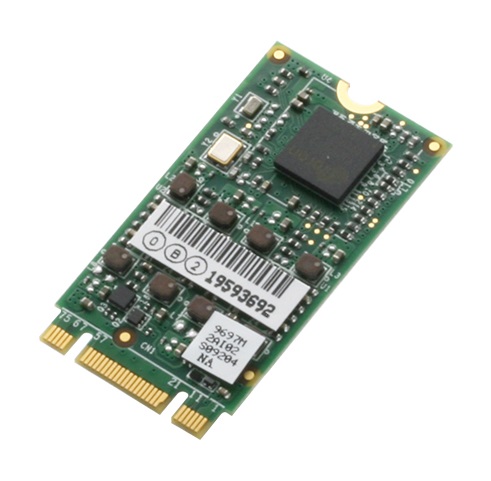

M2AI-2242-520 Kneron KL520 M2 2242 Module

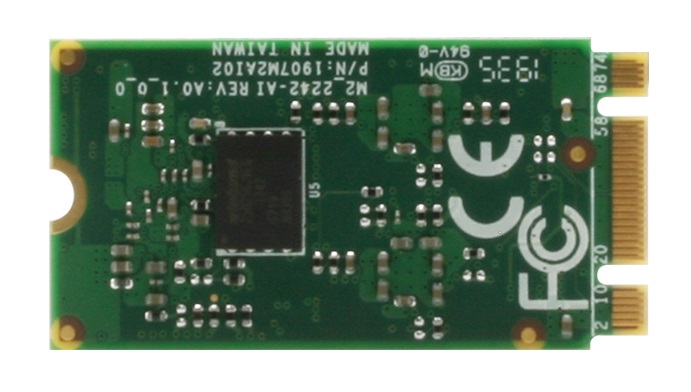

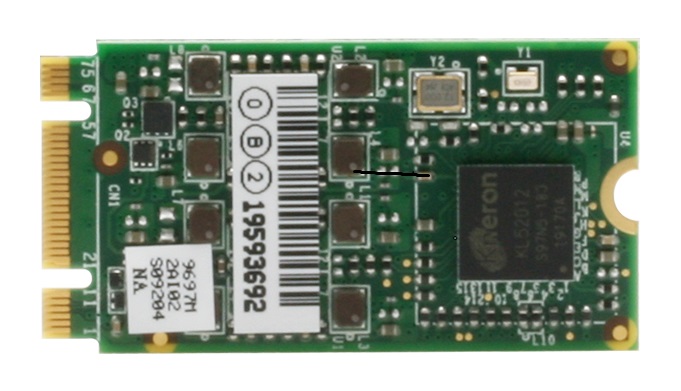

M2AI-2242-520 frontM2AI-2242-520 rear

Request a quote for this product

Enquiry information
Your name
Company name
Email address
Telephone

Add to quote list

Add the M2AI-2242-520 to your quote list to send to our sales team for a quote on all your chosen products
Product
Availability
PER-T520-M2AI-A10-0421

Kneron KL520 NPU AI Edge M.2 2242 Module

* Lead time is indicative and is subject to change at time of ordering. Next business day delivery on in-stock products only (when ordered before 3pm).
** Contact us for quantity or project pricing.
† Additional delivery charge may be incurred for certain postcodes (calculated at checkout)
Industry insight.
Computing know-how.
Impulse engineers and specialists have the industry insight and computing technology know-how to design and build solutions that excel in sophisticated and demanding environments.
Discover our Industrial Computing capabilities

M2AI-2242-520 overview

Description
Downloads

The M2AI-2242-520 from Aaeon features the energy-efficient Kneron KL520 Neural Processor Unit (NPU) in a M.2 2242 form factor that’s equally cost-efficient. The KL520 provides efficient AI computing performance of 0.56 TOPS per watt, perfect for remote, mobile, and unmanned applications.

The KL520 is made up with dual ARM Cortex M4 processors which can serve as a co-processor in any system with an M.2 2242 slot. It's low power design and easy integration makes it well-suited for applications including smart locks, security cameras, drones, smart home appliances and robotics.

Impulse also offers a wide range of compact embedded boards and PC's which the M2AI-2242-520 can easily be added to in our UK engineering facility with your choice of processor, memory, storage, peripheral cards and operating system.

For more information about the M2AI-2242-520 AI Edge Computing Module please contact our technical sales team on +44 (0)1782 337 800 or alternatively submit an enquiry.


Features
  • Kneron KL520 NPU designed with ARM architecture
  • Accelerator for AI Edge computing
  • M.2 2242 USB interface
  • Support Framework ONNX, TensorFlow, Keras, Caffe
  • Support Model Vgg16, Resnet, GoogleNet, YOLO, Tiny YOLO, Lenet, MobileNet, DenseNet
  • 0°C to +70°C operating temperature
