Advantech 11th Gen Intel Tiger Lake Core i5/Celeron Ultra Rugged Military-Grade Fanless IP65 Embedded Computer in No ColourAdvantech 11th Gen Intel Tiger Lake Core i5/Celeron Ultra Rugged Military-Grade Fanless IP65 Embedded Computer in No ColourAdvantech 11th Gen Intel Tiger Lake Core i5/Celeron Ultra Rugged Military-Grade Fanless IP65 Embedded Computer in No Colour
Advantech 11th Gen Intel Tiger Lake Core i5/Celeron Ultra Rugged Military-Grade Fanless IP65 Embedded Computer in No Colour

TS-207 Series - Advantech 11th Gen Intel Tiger Lake Core i5/Celeron Ultra Rugged Military-Grade Fanless IP65 Embedded Computer

Fanless Design – PoE GbE for IP Cameras – Lockable IP65 Connectors – 12/24V DC with E-Mark & EN50155 – Vehicle Power Ignition – Built-In Advantech DeviceOn – Extended -40°C to 70°C Temperature Operation
View Quote Options
Compare Model Specs
View All Advantech View All Advantech Embedded Box PCs
View All Embedded Box PCs

Who We Are

Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.

Not found what you're looking for?

We're only a phone call away. Contact us for more information or for personalised help with your project.

Contact Us
Need Help? Call: +44 (0)1782 337 800

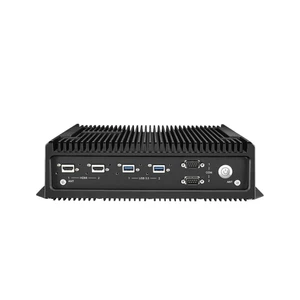

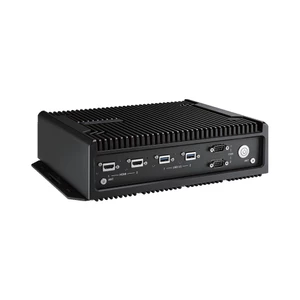

Introducing the TS-207, a Military-grade Fanless IP65 Box PC from Advantech, specially crafted for demanding outdoor applications in 4K NVR and edge AI. At its core is the robust 11th Gen Intel TigerLake processor, providing unparalleled performance for advanced video surveillance with AI acceleration.

Designed with durability in mind, the fanless operation ensures reliability even in the harshest environments, with an impressive temperature range of -40°C to 70°C. The IP65 enclosure adds an extra layer of protection, safeguarding the system against water and dust damage, making it an ideal choice for rugged AIoT applications.

Equipped with features tailored for intelligent applications, the TS-207 supports 4 Ports Gigabit Ethernet or PoE options, enhancing connectivity and versatility. The inclusion of Intelligent Vehicle Power Ignition Control ensures seamless operation in diverse scenarios. Moreover, it adheres to stringent standards such as E-Mark(13), EN50155, and MIL-STD810H certification, guaranteeing reliability and performance under challenging conditions.

Efficient remote management is facilitated by the integration of Advantech WISE-DeviceOn, enhancing the device's usability and maintenance. The TS-207 is more than a box PC; it's a resilient and high-performance solution tailored for the most demanding AIoT applications in the field.

Compare Model Specifications

 Model Name Ethernet Ports Warranty System Memory CPU Display Power Over Ethernet (PoE) USB Serial Ports Storage Expansion Input Voltage Dimensions (WxDxH mm) Operating Temperature Market Certifications Operating System Mounting
TS-207-V2DNA1 4x 10/100/1000Mbps (M12) 2 Years 1x 260-pin DDR4-3200 SO-DIMM, up to 8GB Intel Core i5-1145GRE Processor 2x HDMI Yes 2x USB 3.0 (TYPE-A), 2x USB 2.0 (M12) 2x RS-232/422/485 (DB9) 1x mSATA (shared with mPCIe) 1x SATA III (requires 2.5" mounting kit) 2x Full-size Mini PCIe slot, 1x M.2 2230 E-key (PCIe/USB2.0) 12V/24V DC 280 x 81 x 230 0°C to +60°C, (-40°C to +70°C WT models) CE, FCC Class A, ROHS Windows 10, Linux Wall mount
TS-207-V5DAA1 4x 10/100/1000Mbps (M12) 2 Years 8GB onboard and 1x 260-pin DDR4-3200 SO-DIMM, up to 32GB Intel Celeron 6305E Processor 2x HDMI Yes 2x USB 3.0 (TYPE-A), 2x USB 2.0 (M12) 2x RS-232/422/485 (DB9) 1x mSATA (shared with mPCIe) 1x SATA III (requires 2.5" mounting kit) 2x Full-size Mini PCIe slot, 1x M.2 2230 E-key (PCIe/USB2.0) 12V/24V DC 280 x 81 x 230 0°C to +60°C, (-40°C to +70°C WT models) CE, FCC Class A, ROHS Windows 10, Linux Wall mount
Add to Quote List
Model Name Ethernet Ports Warranty System Memory CPU Display Power Over Ethernet (PoE) USB Serial Ports Storage Expansion Input Voltage Dimensions (WxDxH mm) Operating Temperature Market Certifications Operating System Mounting
TS-207-V2DNA1 4x 10/100/1000Mbps (M12) 2 Years 1x 260-pin DDR4-3200 SO-DIMM, up to 8GB Intel Core i5-1145GRE Processor 2x HDMI Yes 2x USB 3.0 (TYPE-A), 2x USB 2.0 (M12) 2x RS-232/422/485 (DB9) 1x mSATA (shared with mPCIe) 1x SATA III (requires 2.5" mounting kit) 2x Full-size Mini PCIe slot, 1x M.2 2230 E-key (PCIe/USB2.0) 12V/24V DC 280 x 81 x 230 0°C to +60°C, (-40°C to +70°C WT models) CE, FCC Class A, ROHS Windows 10, Linux Wall mount
TS-207-V5DAA1 4x 10/100/1000Mbps (M12) 2 Years 8GB onboard and 1x 260-pin DDR4-3200 SO-DIMM, up to 32GB Intel Celeron 6305E Processor 2x HDMI Yes 2x USB 3.0 (TYPE-A), 2x USB 2.0 (M12) 2x RS-232/422/485 (DB9) 1x mSATA (shared with mPCIe) 1x SATA III (requires 2.5" mounting kit) 2x Full-size Mini PCIe slot, 1x M.2 2230 E-key (PCIe/USB2.0) 12V/24V DC 280 x 81 x 230 0°C to +60°C, (-40°C to +70°C WT models) CE, FCC Class A, ROHS Windows 10, Linux Wall mount
