Fanless edge AI system – NVIDIA Jetson Orin NX Super (up to 157 TOPS) – Up to 16GB LPDDR5 – 1x HDMI – 1x GbE LAN – 4x GbE PoE (up to 30W per port) – 4x USB 3.2 Gen2 – 2x COM (RS-232/422/485) & CAN – 8-channel DIO – optional 8x GMSL camera ports – 9V to 36V DC with smart ignition – Wide -25 to 70° temperature operation
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.

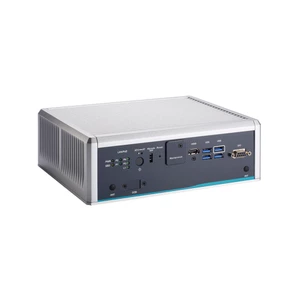

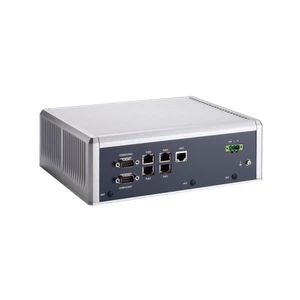

AIE900B-ONX is a compact, IP40, fanless edge AI platform built around Jetson Orin NX Super, delivering up to 157 TOPS for robotics and AMR vision workloads. I/O is ready for cameras and sensors: four GbE PoE (IEEE 802.3at, up to 30W per port), one GbE LAN, four USB 3.2 Gen 2 ports, and a lockable HDMI 2.1 output with 4K support. Control and field connectivity include two software-selectable RS-232/422/485 ports with CAN and an 8-channel DI/DO block. Eight Fakra-Z GMSL1/2 camera inputs are available as an option (see page 1 image callouts). Storage boots from M.2 Key M 2280 NVMe SSD (required; no onboard eMMC), and expansion covers Wi-Fi/LTE via full-size mini-PCIe plus 5G/LTE on M.2 Key B 3042/3052 with Nano SIM. Designed for always-on deployments, it supports smart ignition (9V to 36V DC), a built-in watchdog, and optional out-of-band management, as well as Allxon remote device management for secure 24/7 monitoring, control, and OTA updates. The unit operates from -25 to 70°C (40W mode), is CE/FCC Class A/UKCA certified, and runs Ubuntu 22.04 or later. Dimensions: 239 x 185.3 x 79.4 mm (see page 3 mechanical drawing).
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Axiomtek NVIDIA Jetson Orin NX Fanless Edge AI System
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
AIE900B-ONX-1L4P
NVIDIA Jetson Orin NX 16GB Fanless Edge AI System
