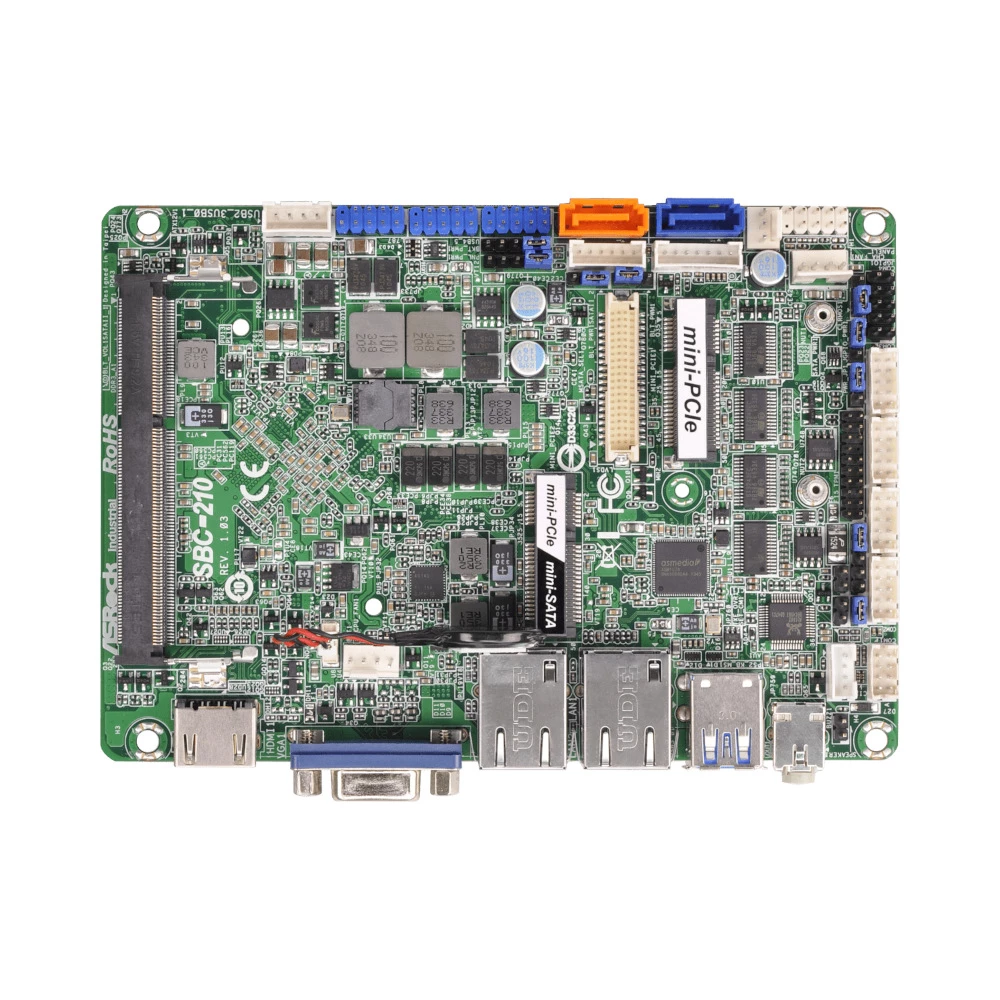

The SBC-210 is a low-profile single board computer based on the Intel Bay Trail-M Celeron J1900/N2930 processors. Industrial in nature, the SBC-210 is available on a long-term support and availability roadmap and is designed for harsh industrial applications.

Impulse can supply the SBC-210 fully configured with industrial grade memory, storage and a Microsoft Windows Embedded operating system.

For more information about the SBC-210 single board computer please contact our technical sales team on +44 (0)1782 337 800 or alternatively submit an enquiry.

Features
  • On-board fanless Intel Celeron J1900 2GHz or Celeron N2930 1.86GHz embedded processor
  • Supports up to 8GB of DDR3L-1333MHz SODIMM memory
  • Integrated Intel Gen7 graphics processor - supports DirectX 11 and OpenGL 3.2
  • Dual Gigabit Ethernet ports and four serial COM ports
  • Low profile I/O plate design for compact chassis systems
  • System :
  • CPU : On-board Intel 'Bay Trail' Celeron N2930 1.86GHz or Celeron J1900 2GHz Processor
  • System Memory : Supports 1 x 204-pin DDR3L SODIMM Memory up to 8GB (DDR3L Memory Only)
  • Watchdog : 255ms Watchdog Timer
  • Storage : 2 x SATA3.0 Ports, 1 x mSATA Slot (Shared with Mini PCI-Express Slot)
  • Power :9V to 36V DC, AT/ATX
  • Expansion : 1 x Mini PCI-Express Slot (Shared with mSATA Slot)
  • I/O :
  • Display : 1 x VGA DB15 Port, 1 x LVDS Interface, 1 x HDMI Port
  • LAN : 2 x 10/100/1000 RJ45 Gigabit Ethernet Port
  • Audio : 2CH HD Audio; Line-out, Mic-in
  • USB : 2 x USB3.0 Ports, 6 x USB2.0 Ports
  • Serial : 3 x RS-232 Ports, 1 x RS-232/422/485 Port
  • GPIO : 4-in / 4-out GPIO Interface
  • Mechanical :
  • Cooling : Passive Fanless; Custom Heatsink for SBC-210
  • Environmental :
  • Operating Temperature : 0C to +60C
  • Certification : CE/FCC, RoHS
