Industrial ATX Motherboard – 14th/13th/12th Gen Intel Core & Series 2 Processors – LGA1700 – Intel Q670 Chipset – DDR5 Memory up to 192GB – Up to 3x GbE LAN – 6x COM & 11x USB – PCIe Gen 5 Expansion – (-20°C to +60°C)
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.
Call: +44 (0)1782 337 800 | Email: sales@impulse-embedded.co.uk

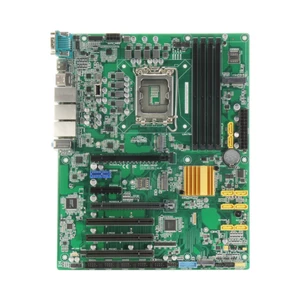

The ATX-Q670A is an industrial ATX motherboard designed for embedded computing, industrial automation, machine control, monitoring systems and high-performance PC-based control applications. Built around the Intel Q670E chipset, the board supports 12th, 13th and 14th Generation Intel Core processors, as well as Series 2 LGA1700 processors, with support for CPUs up to 125W TDP. This makes it a flexible platform for users who need strong processing performance, long-term expandability and broad I/O support in a standard ATX form factor.
The board supports up to 192GB of DDR5 4000MHz memory across four DIMM slots, using a dual-channel, non-ECC, unbuffered memory architecture. This provides the capacity needed for demanding industrial software, data acquisition, control platforms, visualisation systems and multitasking applications. Storage support is extensive, with eight SATA III ports supporting RAID 0, 1, 5 and 10, alongside two M.2 M-Key sockets for PCIe storage. This allows system builders to configure high-capacity storage, fast NVMe boot drives or redundant arrays depending on application requirements.
Display flexibility is another key strength of the ATX-Q670A. It supports up to four independent displays through two HDMI 2.0 ports, two DisplayPort 1.4 ports and a VGA header, making it suitable for operator terminals, control rooms, monitoring dashboards and multi-screen industrial workstations. Expansion options include PCIe Gen 5, PCIe Gen 4, PCIe Gen 3, three legacy PCI slots, M.2 B-Key, Mini PCIe and Micro SIM support, helping the board support both modern and legacy add-on hardware.
The ATX-Q670A also includes dual Intel GbE as standard, with a three-LAN variant available, TPM 2.0, multiple USB interfaces, six serial ports, 8-bit programmable DIO, audio, hardware monitoring, watchdog timer support and smart fan control. With ATX power input, Windows 10 and Windows 11 support, CE and FCC Class A certification, and operation from 0°C to 60°C, the ATX-Q670A is a capable industrial motherboard for expandable embedded PC platforms.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
AAEON 14th/13th/12th Gen Intel Core & Series 2 LGA1700 Industrial ATX Motherboard
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
ATX-Q670A-A10-2L
14th/13th/12th Gen Intel Core & Series 2 LGA1700 Industrial ATX Motherboard – 2x LAN
ATX-Q670A-A10-3L-226
14th/13th/12th Gen Intel Core & Series 2 LGA1700 Industrial ATX Motherboard – 3x LAN
