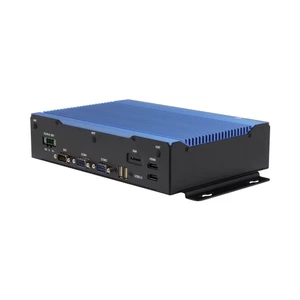

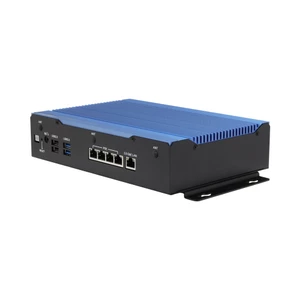

The BOXER-6649-RAP is a fanless embedded computer designed for industrial applications, featuring four independent full-speed PoE LAN ports. It is available with a selection of 28W 13th Generation Intel Core processors (formerly known as Raptor Lake) and offers a 50% increase in DDR5 memory capacity compared to previous generations. Its robust mechanical design makes it suitable for industrial deployment.
AAEON has specifically targeted the BOXER-6649-RAP for the smart security, safety, and surveillance sectors, as evidenced by the system’s I/O specifications. Each of the four PoE LAN ports supports 2.5GbE, and a fifth RJ-45 port also supports 2.5GbE LAN. Additionally, the system includes two USB 3.2 Gen 2 ports (10 Gbps), four USB 2.0 ports, both DB-9 and DB-15 RS-232/422/485 ports, and an 8-bit digital I/O.
The BOXER-6649-RAP can support up to 96GB of DDR5 memory across two SODIMM slots, a significant upgrade from the 64GB limit of earlier models in its Rugged Box PC series. This increase is designed to help customers store large data models locally and perform real-time AI inference without frame dropping, making it particularly suitable for its target applications.
In terms of storage and expansion, the BOXER-6649-RAP is equipped with an M.2 2280 M-Key slot for NVMe modules and an internal 2.5” SATA drive bay, providing both fast read/write speeds and stable, cost-effective long-term data storage. The system can also accommodate Wi-Fi/LTE, 5G, and cellular modules through M.2 E-Key, M.2 M-Key, and SIM card slots, respectively.
Despite its ventless chassis, the BOXER-6649-RAP remains compact, measuring 242mm x 167mm x 56mm. It operates within a temperature range of -25°C to 60°C and is designed to withstand the conditions of industrial environments with fluctuating power supplies. It has a 9V to 36V power input range through a 3-pin terminal block connector with a protection circuit and is built to resist damage from shocks and vibrations.
Regarding its operating system support, the BOXER-6649-RAP is compatible with Windows 10 and 11 IoT Enterprise LTSC, Windows 11 Pro, and Linux Ubuntu 22.04.
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Aaeon 13th Gen Intel Core i7/i5/i3 Fanless Compact Embedded Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
BOXER-6649- RAP-A1-1010
13th Gen Intel Core i3-1320PE Fanless Compact Embedded Computer
BOXER-6649- RAP-A2-1010
13th Gen Intel Core i5-1340PE Fanless Compact Embedded Computer
BOXER-6649- RAP-A3-1010
13th Gen Intel Core i7-1370PE Fanless Compact Embedded Computer
