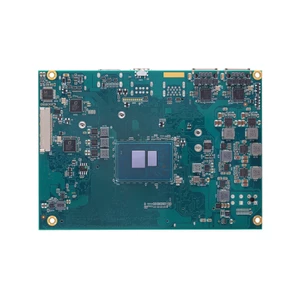

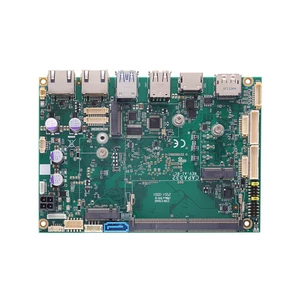

The Axiomtek CAPA332 is a compact 3.5in embedded single board computer designed around Intel N97 and N150 processors, combining modern processing, DDR5 memory, high-speed networking and flexible expansion within a 146 x 104 mm form factor. The platform supports one DDR5-4800 SO-DIMM with up to 32GB of system memory, providing a modern memory architecture for embedded systems that need a balance of processing capability, connectivity and compact integration. datasheet-capa332-141026
Connectivity is a key strength of the CAPA332. Two 2.5GbE ports based on Intel I226-V controllers provide high-speed Ethernet connectivity, while external I/O includes two USB 3.2 ports, two USB 2.0 ports, HDMI 1.4 and DisplayPort. Internally, the board provides a further two USB 2.0 interfaces alongside one RS-232 port and one configurable RS-232/422/485 serial interface. Audio support includes mic-in, line-in and line-out connections. datasheet-capa332-141026
For display integration, the CAPA332 supports HDMI, DisplayPort and LVDS, with optional eDP and additional LVDS support. Storage and expansion are equally flexible, with SATA 3.0 and an M.2 Key M 2242 slot for PCIe x2 storage. Three M.2 expansion interfaces are provided across the platform: Key M for storage, Key E 2230 for PCIe x1 or USB 2.0 devices, and Key B 3042/3052 supporting USB 3.2 Gen 2 and USB 2.0, together with a SIM connector via pin header. datasheet-capa332-141026
Additional embedded features include onboard TPM 2.0, SMBus, programmable 8-channel GPIO and a configurable watchdog timer. The board accepts 12V or 19–24V DC input and supports AT Auto Power On. Passive operating temperature support extends from -20°C to +70°C, giving system designers a compact and highly configurable SBC platform with modern networking, display and expansion capability.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Axiomtek Fanless Intel Processor N97/N150 3.5" Single Board Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
CAPA332-N97-L
Fanless Intel Processor N97 3.5" Single Board Computer
CAPA332-N150-L
Fanless Intel Processor N150 3.5" Single Board Computer
