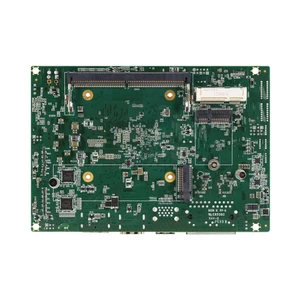

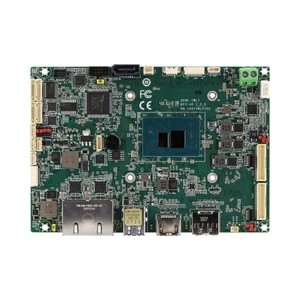

The GENE-ADN7 is a 3.5 inch SubCompact board designed for embedded and industrial applications that need low-power Intel Processor N-series performance, flexible display output and rich onboard I/O in a compact 146 mm x 101.7 mm footprint. It is suitable for space-constrained systems such as industrial controllers, embedded HMIs, digital signage players, machine monitoring systems, kiosks, automation equipment, edge gateways and compact data acquisition platforms.
The board supports Intel Atom x7000E Series, Intel Processor N-series and Intel Core i3 Processor N-series options, including Intel Processor N97, Intel Atom x7425E and Intel Core i3-N305 support as listed in the specification table. Memory support is provided through one DDR5 4800 SODIMM socket, with up to 16GB non-ECC memory. This gives the GENE-ADN7 a modern memory platform for Windows 11, Ubuntu 24.04.2 and embedded software environments.
Display support is a key strength of the board. The GENE-ADN7 includes HDMI 1.4b, DisplayPort 1.4a and two LVDS interfaces, with LVDS 1 also supporting eDP by BOM change. HDMI supports up to 3840 x 2160 at 144Hz, while DisplayPort supports up to 3840 x 2160 at 120Hz. Up to three simultaneous displays are supported, making the board useful for multi-screen HMIs, panel PCs and visual monitoring systems.
I/O includes dual Intel I226 2.5GbE LAN, two USB 3.2 Gen 2 ports, four USB 2.0 ports, four serial ports, 8-bit GPIO, SMBus or I2C, audio headers, SATA 6Gb/s and a SATA power connector. Expansion includes full-size mini PCIe or mSATA, M.2 2280 M-Key and M.2 2230 E-Key. With TPM 2.0, watchdog timer support, 12V power input, AT/ATX power support and 0°C to 60°C operation, the GENE-ADN7 is a flexible compact SBC for industrial embedded designs.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
AAEON Intel Processor N Series 3.5" Single Board Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
GENE-ADN7-A10-0001
Intel Processor N97 3.5" Single Board Computer
GENE-ADN7-A10-0002
Intel Atom x7425E 3.5" Single Board Computer
