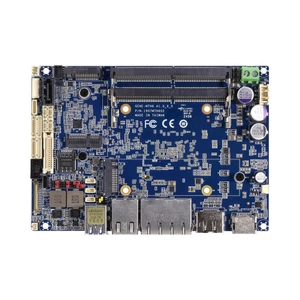

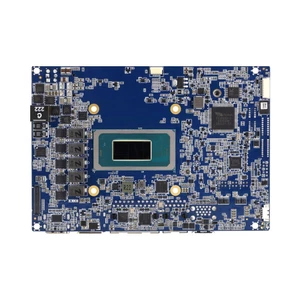

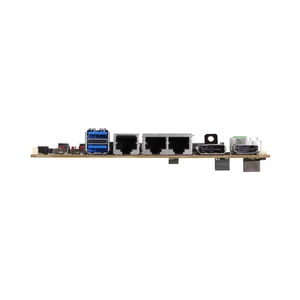

GENE-ARH6 Series - Aaeon Intel Core Ultra Processors 3.5" Single Board Computer

  • GENE-ARH6-A10-0001
  • GENE-ARH6-A10-0002

3.5" Single Board Computer – Intel Core Ultra 7/5 Processor (Series 2) – Up to 96GB DDR5 6400 MHz – 2x 2.5Gigabit LAN, 1x Gigabit LAN – 6x USB, 4x COM & 8-bit GPIO – 9V to 36V DC input – 0°C to +60°C temperature operation

Who We Are

Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.

Not found what you're looking for?

We're only a phone call away. Contact us for more information or for personalised help with your project.

Contact Us

The GENE-ARH6 3.5" Subcompact board, designed for demanding edge workloads that combine graphics, control, and AI. Powered by Intel Core Ultra 200U or 200H Series processors, the board supports up to 96 GB of DDR5 memory and integrates Intel Arc 140T graphics, alongside Intel AI Boost, delivering up to 96 TOPS for inference tasks such as robotic guidance and safety monitoring.

I/O breadth is a highlight. You get four COM headers (two RS-232/422/485 and two RS-232), an 8-bit GPIO, a selectable SMBus or I2C interface, and four USB 2.0 headers for legacy and industrial peripherals. For networking, three LAN ports are included, featuring two 2.5GbE ports (with Intel vPro support on applicable CPUs) to accommodate multi-camera streams, PLC backhaul, or segregated OT networks. Power input ranges from 9 to 36 V with ERP support, providing flexibility for benchtop, vehicle, or cabinet installations.

Expansion covers modern connectivity and storage: an M.2 3052 B-Key for 5G, an M.2 2230 E-Key for Wi-Fi 6E CNVi, plus an M.2 2280 M-Key (PCIe Gen 4) for NVMe. An FPC2 connector exposes two additional PCIe Gen 4 lanes, enabling RAID 0/1 for enhanced throughput or redundancy.

Looking to accelerate your HMI or vision terminal? Pair the GENE-ARH6 with a matched LCD and touch assembly for a turnkey board-plus-display bundle, including cables and power guidance. Tell us your preferred panel size, brightness and mounting style, and we’ll recommend a validated kit.

Form Factor 3.5"
CPU Intel Core Ultra 7/5 Processors (Series 2)
Memory 2x 262-pin DDR5 6400MHz SO-DIMM up to 96GB
Display 1x DP, 1x HDMI, 1x LVDS, 1x eDP
Ethernet Ports 2x 10/100/1000/2500 Mbps (RJ45), 1x 10/100/1000 Mbps (RJ45)
USB 2x USB3.2 Gen 2 (Type-A), 4x USB2.0 (Header)
Storage 1x SATA III with 5V Power, 1x M.2 2280 M-key (PCIe Gen4 x4/SATA)
Serial Ports 2x RS-232/422/485 (Header), 2x RS-232 (Header)
Digital I/O options 8-bit GPIO
Expansion 1x M.2 3052 B-key (PCIe/USB3), 1x M.2 2230 E-key (PCIe/USB2)
Input Voltage 9V to 36V DC
Operating Temperature 0°C to +60°C
Trusted Platform TPM2.0
Operating System Widnows 11/10, Linux
Market Certifications CE, FCC Class A, RoHS
Warranty 2 Years
