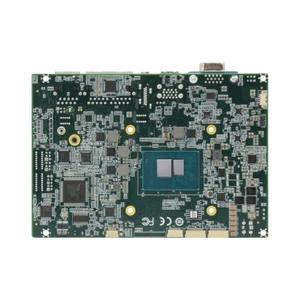

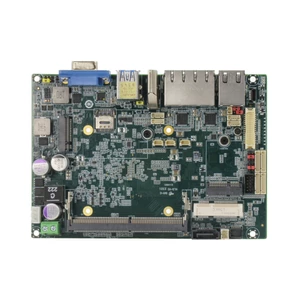

The Aaeon GENE-TWL6 is a 3.5-inch subcompact board for embedded and industrial systems that need strong connectivity, flexible display support and a compact footprint. Built around Intel Processor N-series and Intel Core Processor N-series SoC options, the board supports either the Intel Processor N150 or Intel Core 3 N355, giving system builders a choice between efficient low-power computing and a higher-performance embedded platform. It supports up to 16GB of DDR5 4800 memory, uses a wide 9 to 36V DC input, and is specified for operation from -20 to 70°C, making it suitable for demanding cabinet, machine and edge deployments.
The GENE-TWL6 is particularly useful where networking is a key part of the design. With three Intel I226 2.5GbE LAN ports, it can support gateway, router, network appliance and industrial communication roles without needing an additional NIC. Display support is also broad, with HDMI, VGA and LVDS on the listed 0001 and 0003 variants, plus support for up to three simultaneous displays. This makes the board a strong fit for industrial HMIs, control panels, kiosks, digital signage controllers and multi-screen monitoring systems.
For industrial integration, the board includes two RS-232/422/485 ports, two RS-232 ports, USB 3.2 Gen 2, USB 2.0, SATA, 8-bit GPIO, SMBus or I2C, audio, a smart fan header and front panel connections. Expansion is provided through full-size mPCIe or mSATA, M.2 2230 E-Key and M.2 3052 B-Key slots, with nano SIM support for communications-focused builds. Typical use cases include edge gateways, compact automation controllers, factory data collection, remote monitoring systems, machine interfaces, networked control equipment and embedded systems requiring multiple LAN ports in a small 3.5-inch form factor.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
AAEON Intel Processor N-Series 3.5" Single Board Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
GENE-TWL6-B11-0001
Intel Processor N150 3.5" Single Board Computer
GENE-TWL6-B11-0003
Intel Core 3 Processor N355 3.5" Single Board Computer
