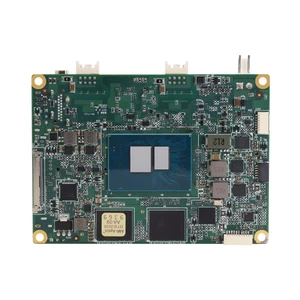

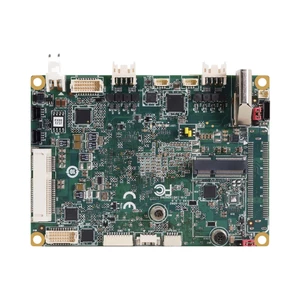

The AAEON PICO-ADN2 is a compact Pico-ITX single board computer designed around Intel Processor N-series and Intel Core i3 N-series processors. Measuring just 100 x 72 mm, the board provides a combination of processing performance, display connectivity, networking and industrial I/O for space-constrained embedded systems.
Processor options include the quad-core Intel Processor N97, operating at 2.00 GHz with a 12 W power rating, and the eight-core Intel Core i3-N305, operating at 1.80 GHz with a 15 W power rating. Onboard single-channel LPDDR5 memory is available in configurations up to 16GB, removing the need for a separate memory module and helping reduce the overall system footprint.
Display connectivity includes HDMI 1.4 supporting resolutions up to 3840 x 2160 at 30 Hz and an LVDS interface supporting up to 1920 x 1200 at 60 Hz. An optional eDP 1.4 interface can support resolutions up to 3840 x 2160 at 60 Hz, while an optional DDI connection is available through the BIO interface. The platform can support up to three simultaneous displays depending on configuration.

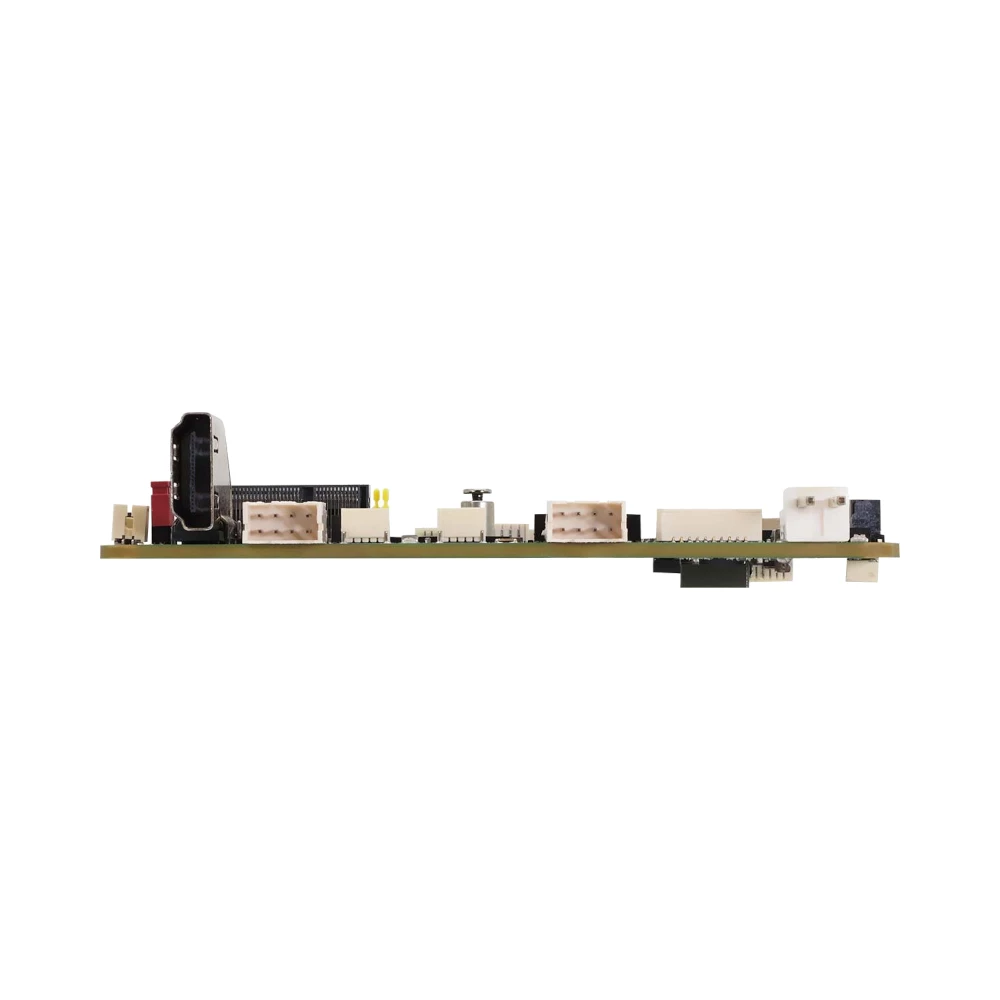

The PICO-ADN2 provides two Ethernet connections alongside two USB 3.2 Gen 1 and two USB 2.0 interfaces. Industrial connectivity includes two configurable RS-232/422/485 serial ports, 4-bit GPIO and SMBus/I2C. TPM 2.0 provides hardware-based security functionality.
Expansion is provided through an M.2 2230 E-Key interface supporting PCIe 3.0 x1 and USB 2.0, together with a full-size mSATA/mPCIe slot selectable through the BIOS. An optional BIO interface can provide PCIe x1, USB 2.0, SMBus, DDI and LPC connectivity.
Powered from a single 12 VDC input, the PICO-ADN2 supports AT and ATX operation. It is specified for operation from -20 to 70°C and supports Windows 10, Windows 11 and Ubuntu 24.04.2, making it suitable for compact industrial controllers, embedded computing platforms, automation equipment and other applications requiring a small but expandable Pico-ITX computing platform.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
AAEON Intel Processor N-series/Core N-series 2.5" Pico-ITX Single Board Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
PICO-ADN2-A10-0001
Intel Processor N97 2.5" Pico-ITX Single Board Computer
PICO-ADN2-A10-0002
Intel Core i3-N305 2.5" Pico-ITX Single Board Computer
