Pico-ITX Single Board Computer – Intel Atom x7000E/ N-series Processor SoC – Up to 16GB LPDDR5 Onboard – 1x HDMI, 1x LVDS/eDP – 1x GbE, 1x 2.5GbE LAN – 6x USB, 4x COM & 4-Bit GPIO – 12V DC Input – -20°C to +70°C
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.
Call: +44 (0)1782 337 800 | Email: sales@impulse-embedded.co.uk

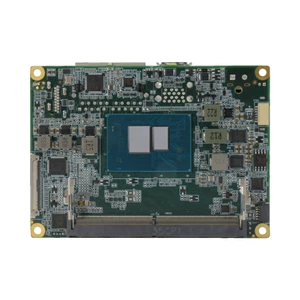

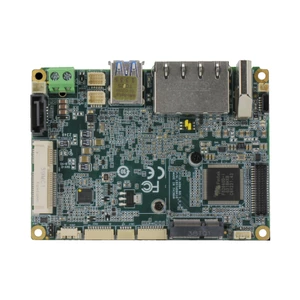

The PICO-ADN4 Rev.B is a compact Pico-ITX board designed for embedded applications where space is limited but modern I/O, low-power processing and industrial reliability are still required. Measuring just 100 mm x 72 mm, the board provides a practical platform for compact control systems, embedded gateways, digital signage, industrial HMIs, automation devices, data acquisition equipment and other small-form-factor edge applications.
The board supports Intel Atom x7000E Series, Intel Processor N-series and Intel Core i3 Processor N-series processors, including the Intel Processor N97, Intel Core i3-N305 and Intel Atom x7425E listed in the datasheet. Memory support is provided through one DDR5 4800 SODIMM socket, with up to 16GB non-ECC memory. This gives the PICO-ADN4 Rev.B a modern memory platform for Windows 10, Windows 11 and Ubuntu-based embedded systems.
Display support includes one HDMI 1.4 output with resolution up to 3840 x 2160 at 30Hz, plus one LVDS interface by default. eDP 1.4 is available as an option, supporting up to 3840 x 2160 at 60Hz. The board supports up to two simultaneous displays, making it suitable for compact visual systems that need both an external display and an embedded panel connection.

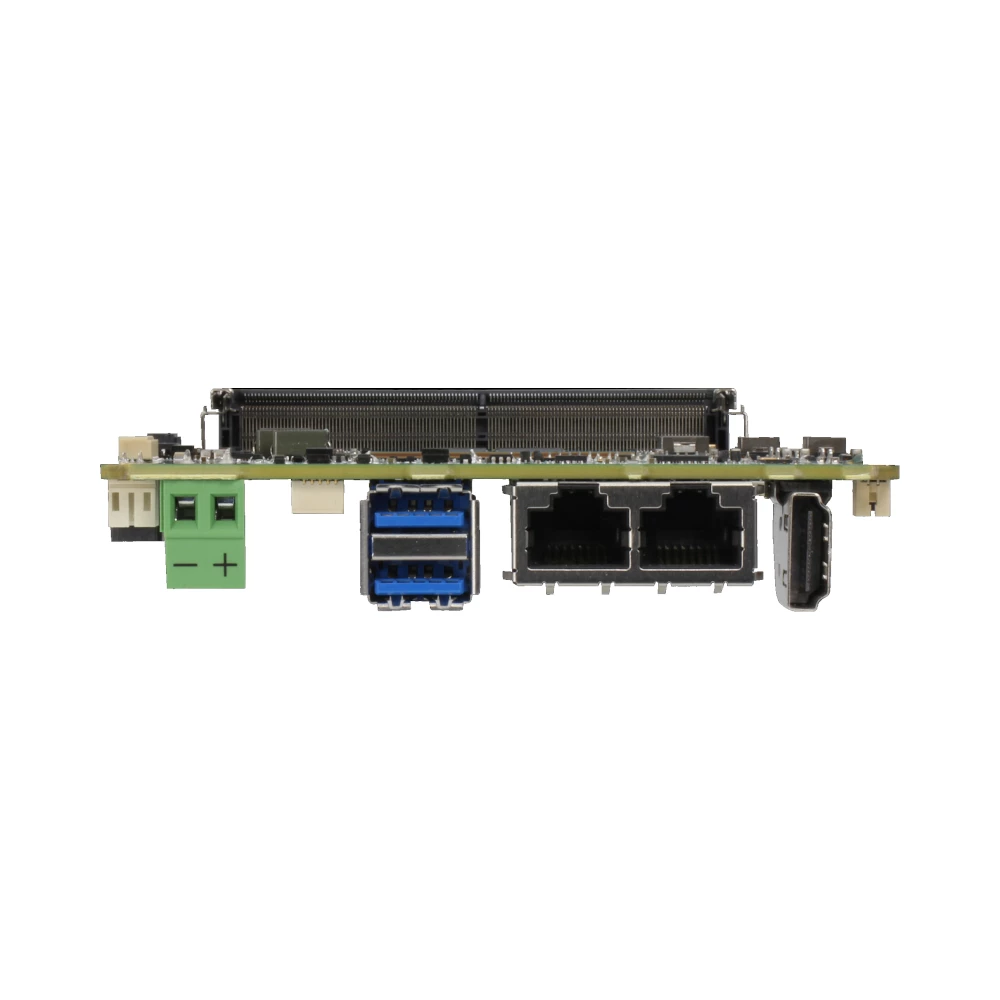

Connectivity includes one Intel I226 2.5GbE port and one Realtek RTL8111H-CG 1GbE port, giving the board dual Ethernet support in a very small footprint. I/O includes two USB 3.2 Gen 2 ports, four USB 2.0 ports, four COM ports, SATA 6Gb/s, SATA power, 4-bit GPIO, SMBus or I2C, front panel signals and a 4-pin smart fan header. COM1 and COM2 support RS-232/422/485, while COM3 and COM4 support RS-232.
Expansion is provided through one full-size mSATA or mini PCIe slot, selected through BIOS, and one M.2 2230 E-Key socket. With TPM 2.0, Wake-on-LAN, a 255-level watchdog timer, -20°C to 70°C operating temperature and optional 9V to 36V input via power adapter card, the PICO-ADN4 Rev.B is a compact and versatile board for small embedded systems.
