Pico-ITX Single Board Computer – Intel Core Ultra Series 1 Processors – Up to 48GB DDR5 Memory – Dual display (HDMI/LVDS) – 1x 2.5GbE & 1x GbE LAN – 4-Bit DIO, 4x USB & 1x RS-232/422/485 Ports – 12V DC Input – -20°C to +60°C
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.

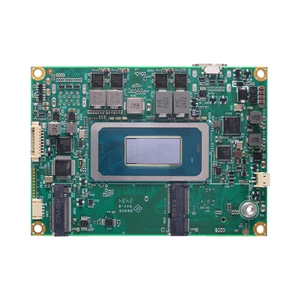

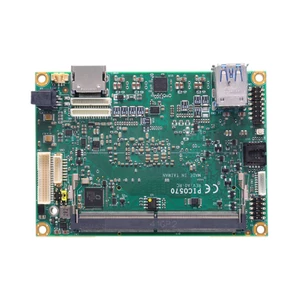

The Axiomtek PICO570 is a compact Pico ITX single board computer designed for modern embedded and edge deployments where space, performance, and connectivity all matter. Built around onboard Intel Core Ultra processors (series 1), it delivers a strong balance of compute and integrated graphics for responsive HMIs, vision enabled edge nodes, and multi function industrial controllers. With Intel Arc Xe LPG graphics and dual display outputs, you can drive a local operator interface over HDMI while simultaneously feeding a secondary panel via LVDS (18/24 bit, single or dual channel), making it a solid fit for kiosks, medical interfaces, and machine control panels.
Despite its 100 x 72 mm footprint, the PICO570 is well equipped for industrial I O. You get dual Ethernet including a 2.5GbE port (Intel I226 V) and a Gigabit port (Intel I219 LM), both supporting Wake on LAN and PXE boot for easier fleet deployment and service. For peripherals and expansion, it provides two USB 3.2 ports and two USB 2.0 ports, plus a serial port supporting RS-232/422/485 for legacy device integration. A 4 channel programmable digital I O block adds straightforward sensor and actuator connectivity, while fTPM 2.0 via Intel PTT supports platform security requirements.
Storage and wireless or I O expansion are handled through M.2: a Key M 2280 socket (PCIe x4) for fast NVMe SSDs, and a Key E 2230 socket (PCIe x1 with USB 2.0) for modules such as WiFi, Bluetooth, or additional interfaces. Designed for real world environments, it supports a wide operating temperature range of -20°C to +60°C, includes a watchdog timer (1 to 255 seconds), and uses a simple 12V DC input with AT auto power on support for unattended operation.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Axiomtek Intel Core Ultra Processors Pico-ITX Single Board Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
PICO570-U5
Intel Core Ultra 5 Processor 125U Pico-ITX Single Board Computer
PICO570-U7
Intel Core Ultra 7 processor 155U Pico-ITX Single Board Computer
