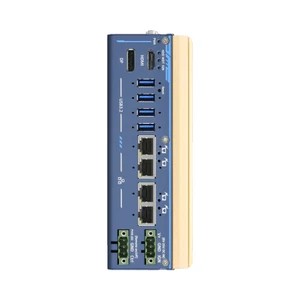

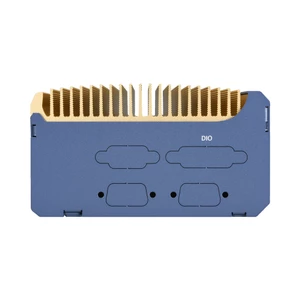

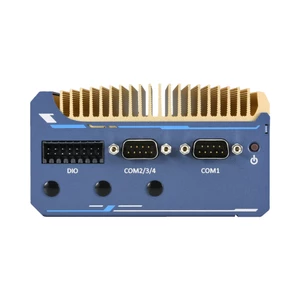

Neousys' POC-700 is an ultra-compact embedded computer that redefines performance in confined spaces. Powered by the latest Intel Alder Lake i3-N305 or x7425E processor, this next-generation controller has an impressive 1.3x increase in CPU performance compared to its predecessor, the POC-500 series.

Equipped with Intel's Alder Lake N-series  i3-N305 processor featuring 8-cores 8-threads or Atom x7425E with a 4-core/4-thread configuration, the POC-700 supports Intel OpenVINO for advanced AI inference capabilities. Its DDR5-4800 memory offers a remarkable increase in bandwidth over DDR4, enhancing overall system performance. The POC-700 features four USB3.2 Gen2 and four GigE with optional PoE+ ports with screw lock mechanisms, providing secure connections for industrial cameras in machine vision applications. HDMI and DP video outputs support high-definition display devices, while isolated DIO facilitates device monitoring and control.

Measuring a compact 64 x 116 x 176mm, the POC-700 fits into confined spaces, presenting an upgrade from the POC-500 series with an identical footprint. Its wide temperature fanless design ensures reliable operation in challenging environments.

With the latest Intel CPU, extensive interfaces for industrial cameras and I/Os, the POC-700 is tailor-made for machine vision and smart city applications, delivering unmatched performance and adaptability in an ultra-compact form factor.
Digital I/O options 8-CH Isolated DIO (4-in/4-out)
Display 1x DisplayPort, 1x HDMI
Market Certifications CE, FCC, ROHS
Operating Temperature -25°C to +70°C
Power Over Ethernet (PoE) Yes
System Memory 1x 262-pin DDR5 4800MHz up to 16GB
CPU Intel Alder Lake Core i3-N305 8C 15W /Atom x7425E 4C 12W processor
Expansion 1x Full-size Mini PCIe slot, 1x SIM, MezIO expansion interface
Mounting DIN-Rail, Wall-mount
Storage 1x M.2 2280 M-key socket (PCIe/SATA)
USB 4x USB3.2 Gen2 (TYPE-A)
Dimensions (WxDxH mm) 64 x 116 x 176
Ethernet Ports 4x 10/100/1000Mbps (RJ45)
Serial Ports 1x RS-232/422/485 (DB9), 3x 3-wire RS-232 (DB9) or 1x RS-422/485 (DB9)
Input Voltage 8V to 35V DC
Operating System Windows 11/10 IoT, Linux
Warranty 2 Years
