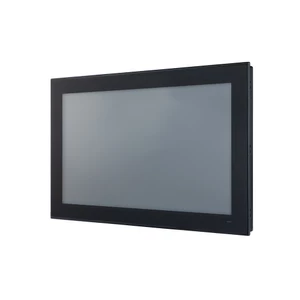

Advantech 15.6" FullHD Intel Alder Lake N97 IP66 Front Fanless Widescreen Panel PC: DDR5, 2x 2.5Gigabit Ethernet, 2x COM, 4x USB and PCAP Touch

PPC-315SW ADL_N
PPC-315SW ADL_N fanless widescreen panel PC is a high-value, ultra-slim panel PC equipped with TFT LCD, and low-power Intel N97 quad-core, 2.0GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-300 ADL_N features an IP66-rated front panel, multi-touch projected capacitive touchscreen, die-cast aluminium alloy enclosure, 2x RS-232/422/485 serial ports, 4x USB ports, and 2x 2.5GbE LAN ports, making it suitable for a diverse range of industrial applications.
Request a quote
View All Panel PCs

Who We Are

Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.

Not found what you're looking for?

We're only a phone call away. Contact us for more information or for personalised help with your project.

Contact Us
Need Help? Call: +44 (0)1782 337 800
PPC-315SW ADL_N fanless widescreen panel PC is a high-value, ultra-slim panel PC equipped with TFT LCD, and low-power Intel N97 quad-core, 2.0GHz, processor to provide high-performance computing in a compact and fanless system. For high durability and functionality, the PPC-300 ADL_N features an IP66-rated front panel, multi-touch projected capacitive touchscreen, die-cast aluminium alloy enclosure, 2x RS-232/422/485 serial ports, 4x USB ports, and 2x 2.5GbE LAN ports, making it suitable for a diverse range of industrial applications.
Brightness 350cd/m
Display DisplayPort
IP Rating Front IP66
Market Certifications CE, FCC, RoHS
Operating Temperature -10°C to +50°C
Screen Size 15.6"
System Memory 1x 262-pin DDR5 4800MHz SO-DIMM memory up to 16GB
CPU Intel Alder Lake N97 2.0GHz quad core processor
Expansion 1x M.2 2242/3042/3052 B-key, 1x M.2 2230 E-key, 1x iDoor expansion slot
Mounting Panel mount, VESA
Resolution 1920 x 1080 (FullHD)
Storage 1x M.2 M Key 2242/2280 (SATA/PCIe x 1), 1x 2.5" SATA bay (uses Idoor expansion)
USB 3x USB3.0 (Type-A), 1x USB2.0 (Type-A)
