Moxa Arm Cortex-A8 1GHz IIoT Gateway PC – Non-LTE – -40°C to 85°C

UC-8112A-ME-T-LX

IIoT Gateway – Arm Cortex-A8 1GHz – 1GB DDR3 – 8GB eMMC – Dual LAN – Dual Serial – Mini PCIe Expansion – No LTE – -40°C to 85°C Temperature Operation

0 in stock – available to order on request.

Who We Are

Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.

Not found what you're looking for?

We're only a phone call away. Contact us for more information or for personalised help with your project.

Contact Us

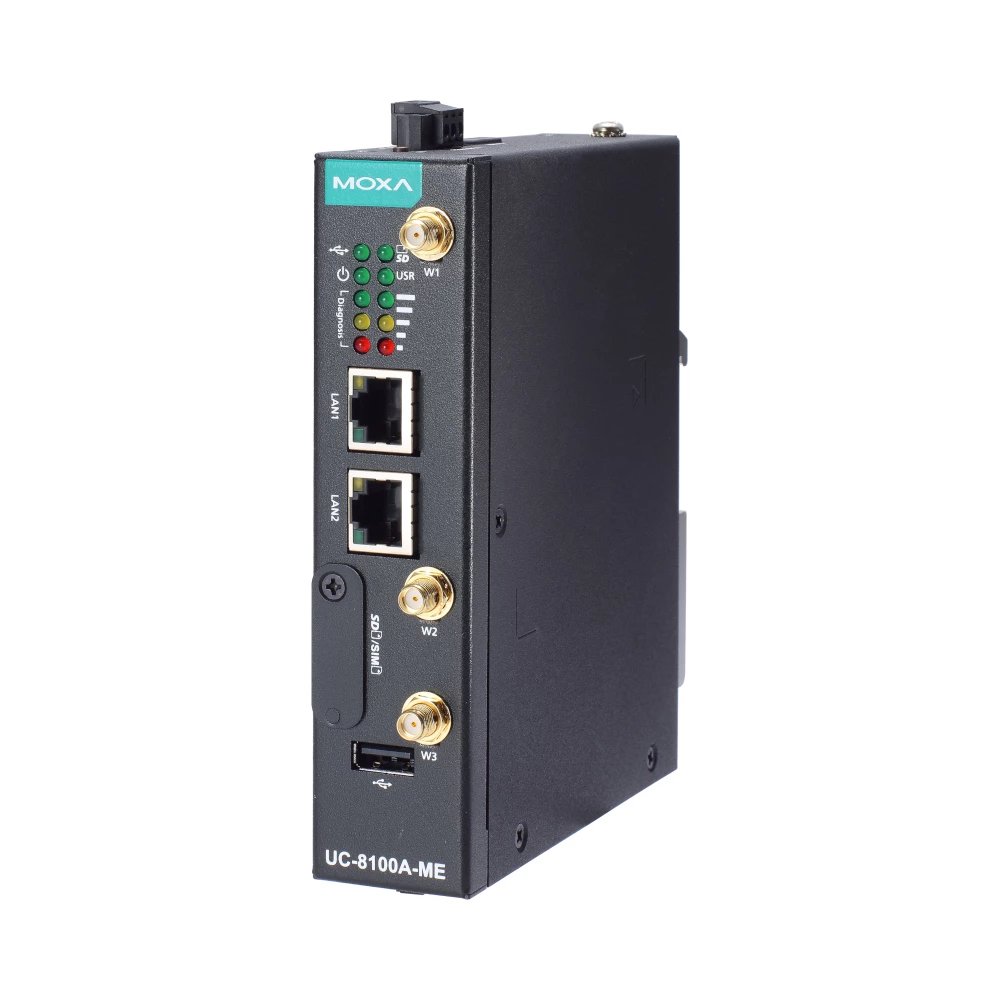

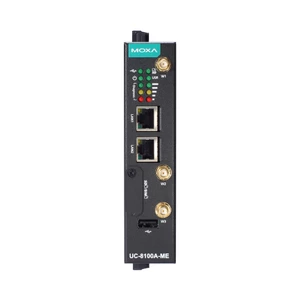

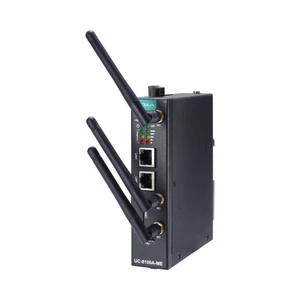

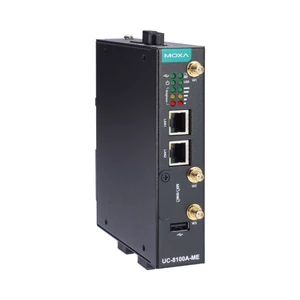

The Moxa UC-8112A-ME-T-LX is a rugged IIoT gateway built for harsh industrial environments. Powered by an ARM Cortex-A8 1GHz processor, 1GB DDR3 memory, and 8GB eMMC storage, it provides the reliability needed for embedded data acquisition and edge processing.

Key features include dual RS-232/422/485 serial ports, dual 10/100 Mbps Ethernet ports, and USB 2.0 for flexible connectivity. Expansion is supported via a Mini PCIe slot, enabling wireless and industrial add-ons. With a wide-temperature tolerance of -40°C to 85°C, DIN-rail mounting, and TPM 2.0 for security, this model is designed for extreme environments in energy, transportation, and utilities.

CPU Armv7 Cortex-A8 1 GHz Processor
System Memory 1GB DDR3 Onboard
Ethernet Ports 2x 10/100 Mbps (RJ45)
USB 1x USB2.0 (Type-A)
Serial Ports 2x RS-232/422/485 (Teminal Block)
Storage 8GB eMMC, 1x SD Card Slot
Expansion 1x Mini PCIe Slot
Input Voltage 12V to 36V DC
Dimensions (WxDxH mm) 141 x 125.6 x 33
Operating Temperature -40°C to +85°C without LTE
Market Certifications Class 1 Division 2, ATEX, CE, UL, RoHS
Operating System Moxa Industrial Linux 1 (Debian 9, kernel 4.4), 2027 EOL
Mounting DIN-Rail, Wall Mount
Warranty 5 Years
