Moxa EN50155 Fanless Expandable RISC Computer with ARM Cortex A7 Processor in No Colour
Moxa EN50155 Fanless Expandable RISC Computer with ARM Cortex A7 Processor in No Colour

UC-8540 Series - Moxa EN50155 Fanless Expandable RISC Computer with ARM Cortex A7 Processor

  • UC-8540-LX
  • UC-8540-T-LX
  • UC-8540-T-CT-LX
EN 50155 Compliant for Railway Applications – Supports WWAN with Dual SIM – WLAN (802.11 a/b/g/n/ac) – Single-Panel I/O Design – Front Access for Easy Maintenance – Isolated 24V to 110V DC Input with Power-Ignition – 5-Year Warranty – -40°C to 70°C Temperature Operation
View options
View All Embedded Box PCs

Who We Are

Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.

Not found what you're looking for?

We're only a phone call away. Contact us for more information or for personalised help with your project.

Contact Us
Need Help? Call: +44 (0)1782 337 800

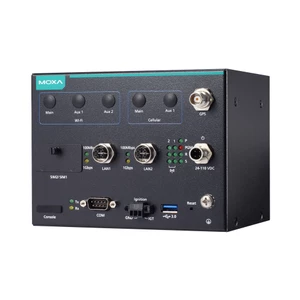

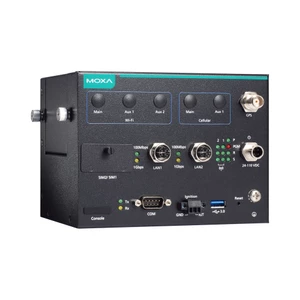

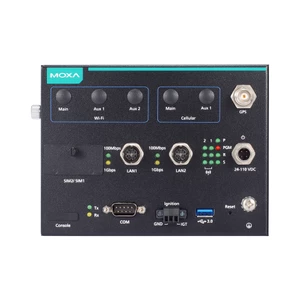

Moxa’s UC-8540 RISC rail computer built around the ARMv7 Cortex-A7 1GHz processor and 1GB of pre-installed DDR3L system memory. Its single-sided I/O design is ideal for transportation applications, where room for installing communication devices is often limited. The front-side access enables easy to installation or replacement of SIM cards and wiring cables. Wireless modules and RTC batteries and mSATA cards can easily be installed of replaced from the top or bottom.

The UC-8540 embedded PC has one miniPCIe slot with USB signal to support a 4G/LTE module and one slot with PCIe/USB signal to support a Wi-Fi module. The 4G/LTE module has two SIM card slots, which can be used to enable redundant cellular network communications or geo-fencing SIM card selection by leveraging the built-in MIRF 2.0, a Moxa device remote-management platform with wireless management.

The UC-8540 can be used as a communication-centric computing platform in applications such as vehicle-to-ground communication gateway, TCMS T2G (train-to-ground) gateway, mobile condition monitoring unit, Ethernet Consist Network T2G gateway, and onboard wireless automated fare collection unit. Wireless modules are sold separately.

The UC-8540 uses an open platform based on Debian 8 with Linux kernel 4.1, allowing solution providers to manage software packages via Debian’s APT (Advanced Packaging Tools), or develop software applications with Moxa’s API Library and GNU C Library.

For more information about the UC-8540 RISC rail computer please contact our technical sales team +44 (0)1782 337 800 or alternatively submit an enquiry.

Features
  • Rugged, embedded rail computing platform system
  • Complies with all EN 50155 mandatory test items*
  • EN50155 Tx (-40°C to 70°C) operating temperature options for harsh environments
  • Supports up to 1x WWAN connections and 2x SIM card slots per cellular module
  • Supports 1x WLAN (IEEE 802.11b/g/n/ac) connection
  • Single-panel I/O design for reduced installation space and easier maintenance
  • Front-side access panel for easy maintenance
  • Isolated 24V to 110V DC power input with power-ignition function suitable for vehicle applications
  • Debian 8 Linux OS
  • Extended 5-year warranty as standard

Delivery & Returns

We offer a range of delivery options to suit your needs, please contact our friendly team for more information.

Moxa EN50155 Fanless Expandable RISC Computer with ARM Cortex A7 Processor

Please complete the details below to receive your quote

Select the products of this series that you wish to request quantity or project pricing, or lead time information for:

  • UC-8540-LX

    Armv7 Cortex-A7 1GHz Embedded Rail PC: 2x Gigabit LAN, QMA Antenna, EN50155, EN45545 and EN50121 Certification, -25°C to +55°C

    View Product

  • UC-8540-T-LX

    Armv7 Cortex-A7 1GHz Embedded Rail PC: 2x Gigabit LAN, QMA Antenna, EN50155, EN45545 and EN50121 Certification, -40°C to +70°C

    View Product

  • UC-8540-T-CT-LX

    Armv7 Cortex-A7 1GHz Embedded Rail PC: 2x Gigabit LAN, QMA Antenna, Conformal Coating, EN50155, EN45545 and EN50121 Certification, -40°C to +70°C

    View Product
