VELA Performance

2U 13th Gen Intel Core i9-13900E High Performance Industrial Rackmount PC

VELA-PRF-RPL-2U-i9
Other models in series
  • 3th Gen Intel Core i9-13900E with 24 cores, up to 5.20GHz, 36MB Cache, 65W TDP.
  • 2U Industrial short base chassis with riser card for I/O expansion with 1x PCIe x16 & 2x PCI slots.
  • 64GB DDR3200 Memory & 2TB PCIe x4 M.2 SSD.
  • Configurable CPU, memory, storage, I/O and OS options available.
  • Built with in-stock components for quick dispatch and long-term support.
0 in stock – available to order on request.

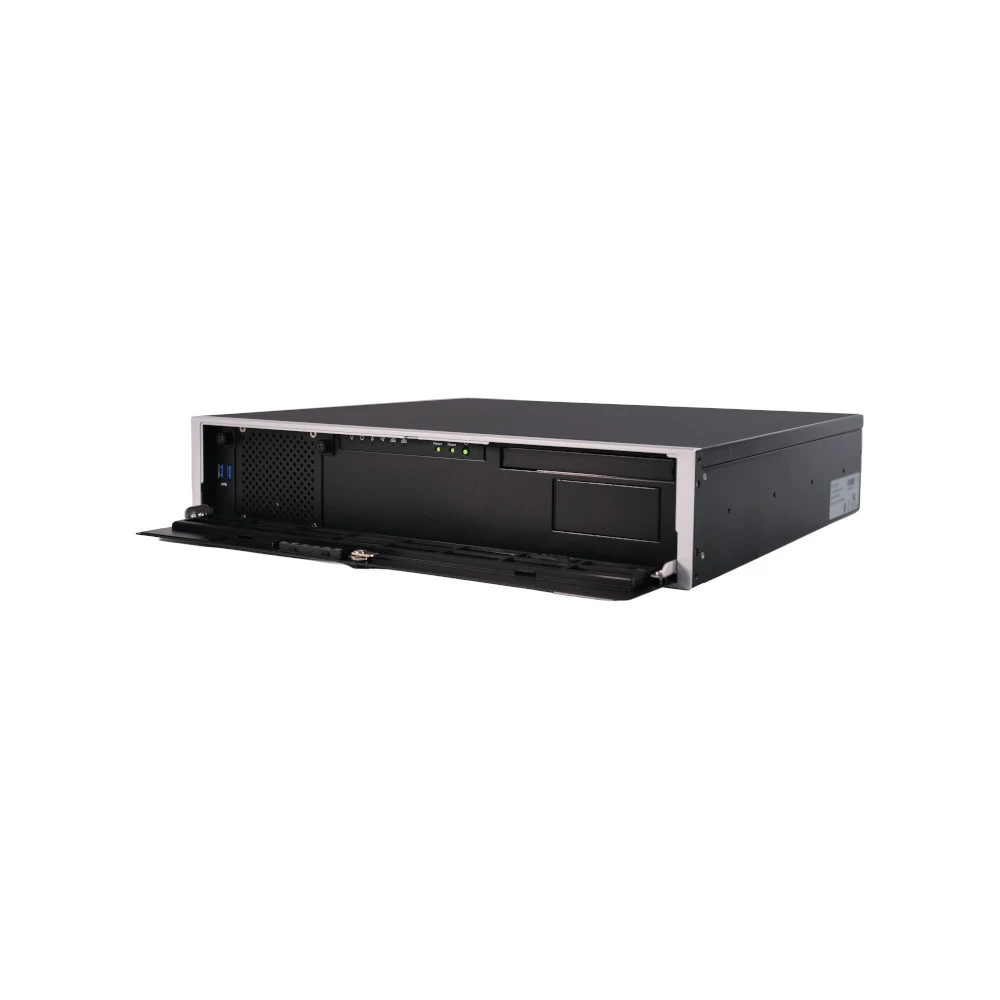

Close up of a VELA chassis.

Explore More from the VELA Performance Series

Discover the wider VELA Performance series, with tower, 2U and 4U chassis options designed for demanding processing, data acquisition, test and measurement and data-intensive applications.

Browse the VELA Performance Series

Configured to your needs. Built without the wait.

Get your project moving faster with configurable VELA Performance platforms, available from stock and ready to build around your processing, memory, storage and expansion requirements.

Call: +44 (0)1782 337 800 | Email: sales@impulse-embedded.co.uk

Built for Heavier Processing Loads

The VELA-PRF-RPL-2U-i9 is the highest-performance 2U configuration in the Performance range, designed for applications that need to process more data, run more software concurrently and maintain performance over sustained workloads.

13th Gen Intel® Core™ i9-13900E processor features 24 cores, speeds of up to 5.20GHz and a 36MB cache for demanding multi-process and compute-intensive workloads.
64GB of industrial DDR4 3200MHz memory giving applications more room to work without relying heavily on storage.
2TB M.2 PCIe SSD provides fast local storage with additional capacity.
RAID 0/1 support allows additional storage to be configured around either performance or data resilience.

Designed for Complex System Builds

With PCIe and PCI expansion, serial interfaces, USB and dual Ethernet, the VELA-PRF-RPL-2U-i9 supports connections to specialist hardware, multiple data sources and wider operational networks.

PCIe Gen4, PCIe Gen3 and PCI expansion options support specialist cards for data acquisition, communications and other application-specific functions.
5x RS-232 and 1x RS-232/422/485 make it easier to connect multiple devices within the same installation.
12x external USB ports provide plenty of connection points for peripherals, test equipment and other USB hardware.
2x Gigabit Ethernet ports provide separate network connections for equipment, local systems or wider operational infrastructure.

Designed for Real-World Applications

High-Speed Data Acquisition
Test & Measurement
Advanced Process Control
Industrial Data Processing
Automated Test Systems
Scientific & Laboratory Computing
Production Data Analysis
Multi-Application Workloads

Built by Impulse, Powered by Advantech

Choosing VELA Performance brings together Advantech's proven industrial computing technology with Impulse Embedded's UK-based configuration and technical expertise. The result is a high-performance industrial computing platform that can be specified around applications requiring greater CPU performance, memory capacity, storage speed and expansion than a general-purpose IPC.

At Impulse Embedded, we configure and test every VELA Performance system before delivery. Processor, memory, storage, RAID, expansion and operating system options can all be selected around the application, helping engineering teams deploy a platform that is properly specified for demanding and data-intensive workloads.

Trusted Industrial Technology
Built around Advantech industrial motherboards and computing technology designed for dependable, long-term deployment.
UK-Based Technical Support
Backed by Impulse Embedded’s experienced technical team for specification, configuration, integration support and product guidance.
Fast Delivery
VELA Performance components are held in stock, helping us configure, build and deliver systems with shorter lead times for time-sensitive industrial projects.
Chassis Form Factor 2U
Computer Power Supply 500W 80-Plus Bronze ATX Power Supply
Motherboard AIMB-788G2-00A1 - 14th/13th/12th Gen Intel Core i9/i7/i5/i3 Q670E LGA1700 Industrial ATX Motherboard
CPU 13th Gen. Intel Core i9-13900E, 24 core up to 5.20GHz, 36MB Cache 65W TDP, LGA 1700
CPU Cooler 125W 2U/4U CPU Cooler for LGA 1700/1851 Socket
Memory 64GB (4x 16GB) Industrial DDR4 3200 Non-ECC U-DIMM
Internal Storage 2TB M.2 2280 PCIe SSD
Display 1x HDMI, 1x DisplayPort, 1x VGA
LAN 2x 10/100/1000 Mbps (RJ45)
USB (External) 4x USB 3.2 (Rear), 6x USB 2.0 (Rear) 2x USB3.0 (Front)
Serial Ports 1x RS-232 (DB9), 4x RS-232 (Header), 1x RS-232/422/485 (Header)
External drive bays AIMB-RP3PF-21A1E - 2U riser card with 1x PCIex16 & 2x PCI expansion
Expansion 1x PCIe Gen4 (x16), PCIe Gen 3 (x8), 3x PCIe Gen 3 (x4),2x PCI
RAID RAID 1/0 Supported
vPro, AMT & TPM TPM2.0
Operating System Windows 11/10, Ubuntu
Dimensions (WxDxH mm) 482 x 88 x 398
Market Certifications CE , RoHS
Warranty 3 Year Return to base
Operating Temperature 0°C to +60°C
