Fanless Embedded Box PC – Intel Core Ultra Processors Series 3 – 2x SODIMM DDR5 7200MHz – 4x 2.5GbE LAN – 6x COM, 6x USB & 8-Bit GPIO – TPM2.0 & Advantehc iDOOR Support – 12V to 24V DC – -20°C to +60°C
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.
Call: +44 (0)1782 337 800 | Email: sales@impulse-embedded.co.uk

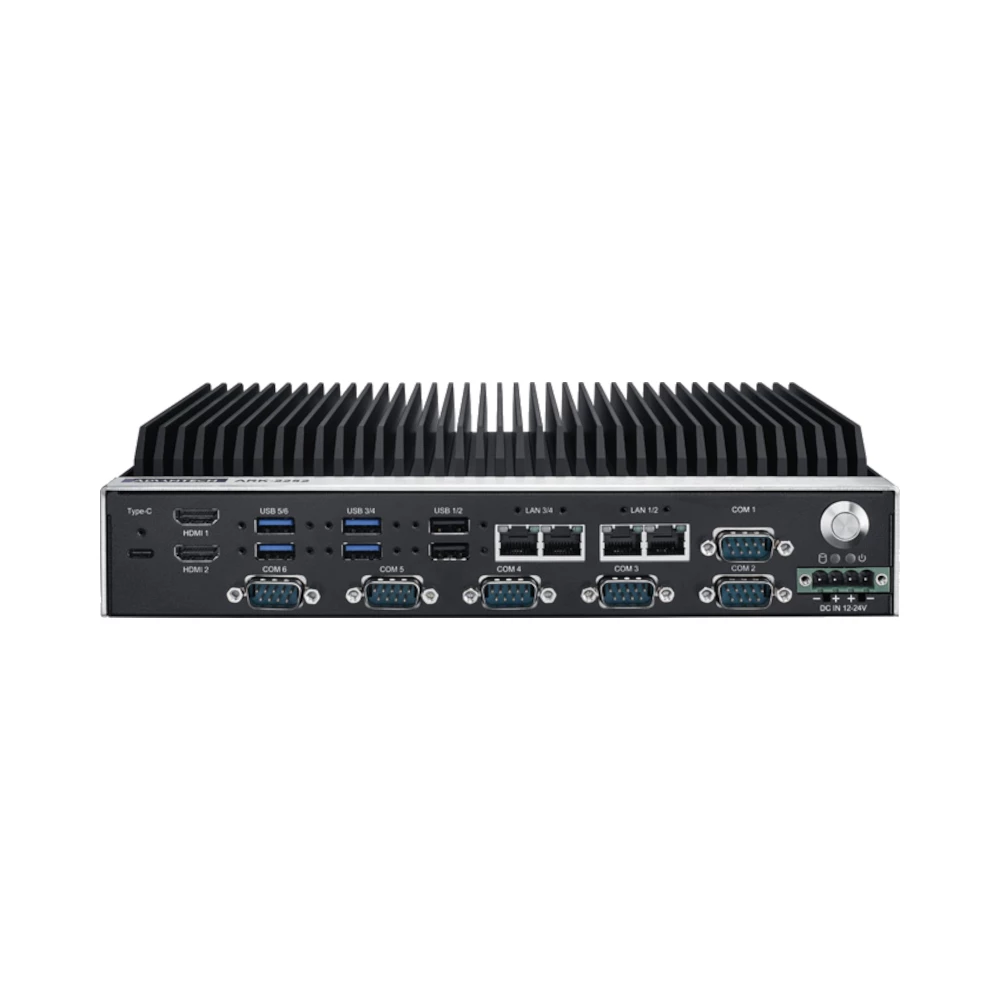

The ARK-2252 is a fanless embedded box PC designed for industrial edge computing, automation, machine control, monitoring, AI inference and embedded vision applications. Built around Intel Core Ultra Series 3 Panther Lake processors, the system offers a compact but capable platform for projects that need modern CPU, graphics and AI acceleration in a rugged industrial form factor.
The series is available with Intel Core Ultra 7 358H or Intel Core Ultra 5 325 processor options. The Ultra 7 model provides 16 cores and AI capability listed up to 180 TOPS, while the Ultra 5 model provides 8 cores and AI capability listed up to 95 TOPS. Memory support includes two CSODIMM sockets with capacity up to 128GB, using DDR5 6400 or 7200 MT/s depending on processor configuration. This gives the ARK-2252 enough performance headroom for local inference, data processing, multi-tasking and industrial software workloads.
Display support includes two HDMI 2.1 outputs and one USB Type-C DisplayPort Alt Mode output, with all three supporting up to 3840 x 2160 at 60Hz. This makes the system suitable for HMI, vision inspection, monitoring dashboards and multi-screen industrial installations.
I/O is broad for a compact fanless system. The ARK-2252 includes up to four Intel i226V 2.5GbE LAN ports, six serial ports, 8-bit programmable DIO, two CANBus 2.0 ports, four USB 3.2 Gen 2 ports, two USB 2.0 ports, audio and one USB4 Type-C port. Expansion includes M.2 B-Key for 5G, AI or iDoor modules, M.2 E-Key for Wi-Fi and M.2 M-Key PCIe Gen5 x4 storage. Optional PoE modules are supported, though PoE, iDoor and the internal USB 2.0 security dongle option have coexistence limitations.
With 12V to 24V DC input, AT or ATX power mode, TPM 2.0, watchdog timer, aluminium housing, wall, DIN-rail or VESA mounting, -20°C to 60°C operation with suitable airflow and peripherals, and support for Edge AI SDK and WEDA, the ARK-2252 is a flexible industrial box PC for next-generation edge AI and automation deployments.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Advantech Intel Core Ultra Processor Series 3 Fanless Embedded Computer
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
ARK-2252-U1A1
Intel Core Ultra 5 325 Fanless Embedded Computer
ARK-2252-S9A1
Intel Core Ultra 7 358H Fanless Embedded Computer
