Mini-ITX Carrier Board – Supports Nvidia Jetson Orin Nano and NX Super mode-enabled – Supports Jetson BSP Like Orin Dev Kits – Optional 4x Gigabit PoE, 1x GbE LAN – 2x USB3.2, Up to 2x COM, Optional CAN2.0 – 1x PCIe Gen 3 x4 Slot – AC/DC Power input Models – -25°C to +70°C
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.
Call: +44 (0)1782 337 800 | Email: sales@impulse-embedded.co.uk

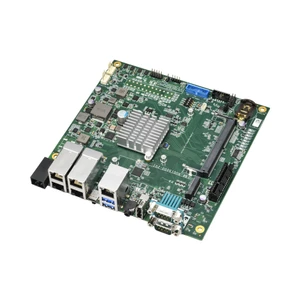

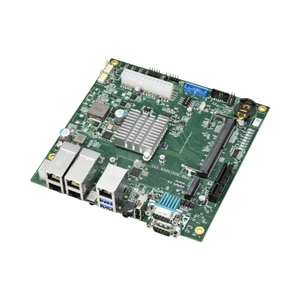

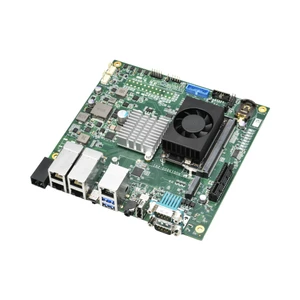

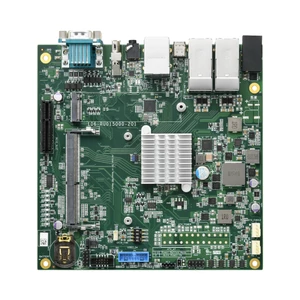

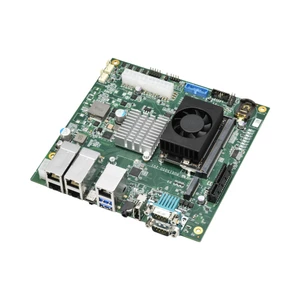

The Jemii-150 Series is a Mini-ITX carrier board platform designed to simplify industrial deployments based on NVIDIA Jetson Orin NX and Jetson Orin Nano modules. Built for edge AI, intelligent video analytics, autonomous mobile robots and embedded vision applications, the range gives system builders a practical route from Jetson development to field-ready industrial hardware without the need for custom carrier board design.
A key advantage of the Jemii-150 Series is its software compatibility. The boards are BSP-aligned with the NVIDIA Jetson Orin Nano Developer Kit and support NVIDIA JetPack releases, allowing direct flashing through NVIDIA SDK Manager. This helps reduce software migration work, simplify testing and support a more consistent development-to-deployment workflow. Please note that the Jetson Orin NX or Jetson Orin Nano module is not included with the carrier board or box models unless it is added separately as part of a configured system.
The platform uses a standard Mini-ITX 170mm x 170mm form factor, making it easier to integrate with available chassis, thermal solutions and power supplies. Across the range, the boards support one GbE port from the Jetson module and four additional Intel I350-AM4 GbE ports, with PoE++ support available on selected models. The PoE++ models support up to 90W on a single port and a total PoE budget of 100W, while remaining compatible with PoE+ and PoE powered devices.
The Jemii-150 Series also provides USB 3.2, USB Type-C OTG, DisplayPort, isolated digital I/O, RS-232/422/485, M.2 storage, PCIe Gen3 x4 expansion and wide temperature operation from -25°C to 70°C. With options for ATX power, ATX plus PCIe 6-pin power or 9V to 32V DC input, the range is well suited to industrial AI deployments requiring long lifecycle stability, flexible I/O and reliable Jetson Orin carrier support.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Neousys Mini-ITX Jetson Orin Nano/NX Carrier board Compatible with NVIDIA Jetpack releases
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
Jemii-150D-PoE
Mini-ITX Jetson Orin Nano/NX Carrier Board – 4x PoE++ & 9V to 32V DC Power
Jemii-150A-PoE
Mini-ITX Jetson Orin Nano/NX Carrier Board – 4x PoE++ & ATX Power
Jemii-150A
Mini-ITX Jetson Orin Nano/NX Carrier Board – 5x GbE & ATX Power
Jemii-150A-PoE-Box
Mini-ITX Jetson Orin Nano/NX Carrier Board – 4x PoE++, ATX Power & Mini ITX Chassis
Jemii-150A-Box
Mini-ITX Jetson Orin Nano/NX Carrier Board – 5x GbE, ATX Power & Mini ITX Chassis
