Expansion Modules for MIC-78 Series – Flexible PCIe/PCI expansion – PCIe speed up to Gen5 – Optional smart fan for thermal optimisation – Additional 12VDC power for add-on cards – Up to 85W add-on card power (non-GPU) – Storage expansion bays available – Supports 2x 2.5" swappable HDD/SSD (model dependent)
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.

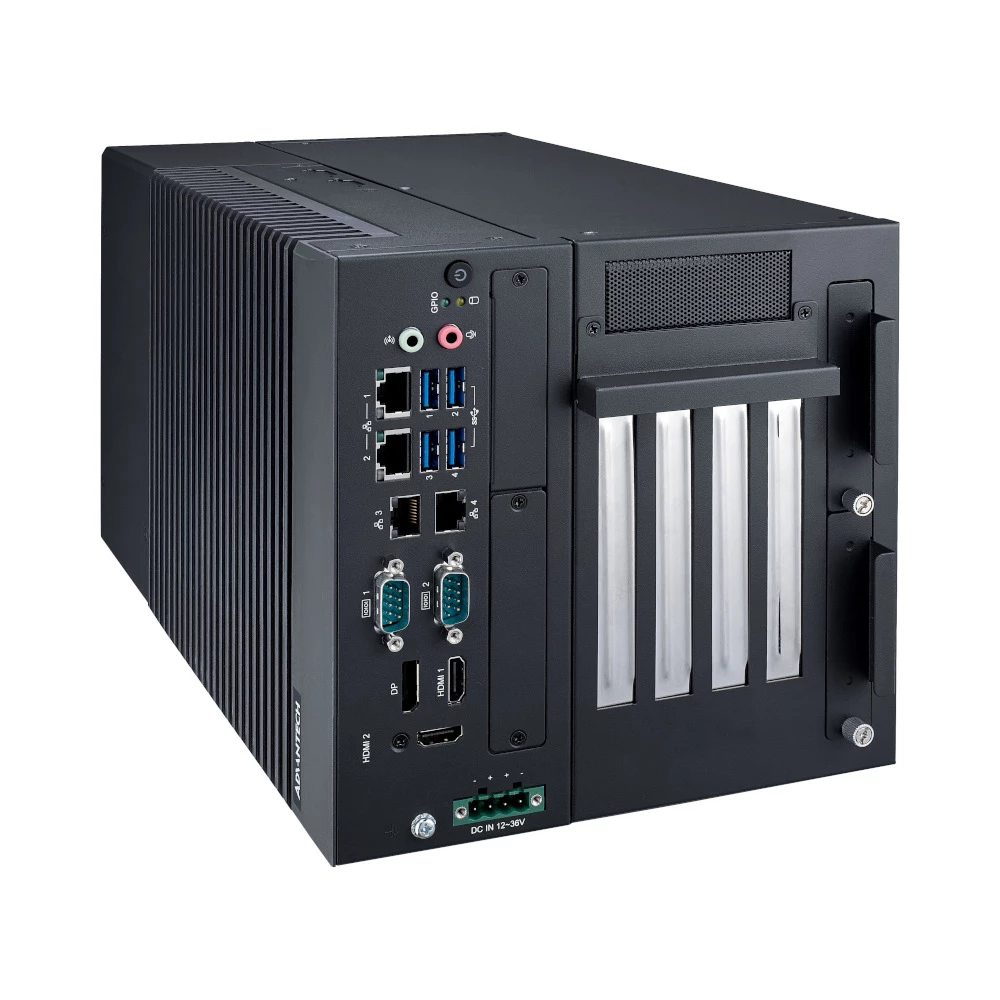

The Advantech MIC-78 i-Module Series is a flexible expansion ecosystem built for MIC-78 Series modular IPCs, helping you scale I/O, storage, and add-on card capability without redesigning the core system. Designed for industrial edge deployments, these expansion modules support both PCIe and PCI add-on cards and deliver PCIe speeds up to Gen5 for high-bandwidth applications such as frame grabbers, motion control, and accelerator cards.
To support higher power cards, MIC-78 i-Modules include an additional 12VDC power source via an onboard connector and support up to 85W add-on card power consumption, beyond what the PCIe/PCI slot alone can provide. Thermal control is addressed with optional system fans and an intelligent Smart Fan capability, helping to manage heat generated by expansion cards and improve stability in 24/7 operation.
Storage expansion is also a core advantage. Depending on the i-Module chosen, you can add support for 2.5-inch and 3.5-inch HDD/SSD bays, including configurations that support up to 2x 2.5-inch swappable drives for service-friendly maintenance and data handling at the edge.
With 1-slot, 2-slot, and 4-slot options available across the range, the MIC-78 i-Module Series provides a clear upgrade path for expanding PCIe/PCI connectivity, storage capacity, and thermal headroom while staying aligned to the MIC-780 platform.
Video AI Edge Computing
Deploy high-performance GPU acceleration for AI inference, video analytics, and computer vision.
Support up to 350W NVIDIA GPUs with reliable power delivery and cooling.
Industrial Automation
Enable real-time inspection, robotics, and process optimisation with GPU-powered workloads.
Rugged design with vibration/shock resistance and wide operating temperature for harsh factory environments.
Smart Cities & Transportation
Run video-based applications such as traffic monitoring, surveillance, and public safety AI.
Compact design with IP30 protection, suitable for roadside and transport edge deployments.
3D Imaging & Vision Systems
Accelerate 3D image rendering and machine vision processing.
Patented GPU card holders ensure stability in industrial and mobile installations.
Reliable Power & Thermal Management
Dual 24V DC inputs with up to 700W peak power for demanding GPU applications.
Intelligent PWM-controlled cooling and status LEDs provide system reliability and easy maintenance.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Advantech Expansion Modules for MIC-780/785 Series
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:

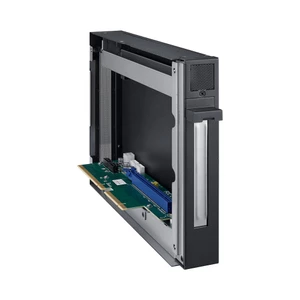

MIC-78M10
1 Slot Expansion Module for MIC-780/785 Series

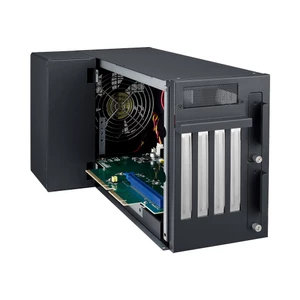

MIC-78MG30
3 Slot GPU Expansion Module for MIC-780/785 Series – 1x PCIe x16 + 1x PCIe x4 + 1x PCIe x2

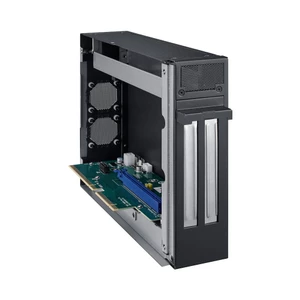

MIC-78M20
2 Slot Expansion Module for MIC-780/785 Series – 1x PCIe x16 + 1x PCIe x4
MIC-78M20-01
2 Slot Expansion Module for MIC-780/785 Series – 2x PCIe x8
MIC-78M11
2 Slot Expansion Module for MIC-780/785 Series – 1x PCIe x16 + 1x PCI

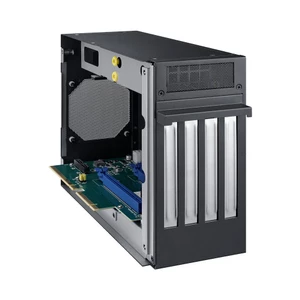

MIC-78M40-01
4 Slot Expansion Module for MIC-780/785 Series – 2x PCIe x8 + 1x PCIe x4 + 1x PCIe x2
MIC-78M13
4 Slot Expansion Module for MIC-780/785 Series – 1x PCIe x16 + 3x PCI
