MIX-TLUD1 11th Gen Industrial Mini-ITX Motherboard

News01 Sep 2021MIX-TLUD1
MIX-TLUD1 11th Gen Industrial Mini-ITX Motherboard
  • 11th Gen. Core i5-1145G7E/i3-1115G4E & Celeron 6305E ultra-low-power processors
  • Intel Iris Xe GPU powers 8K graphics on a single display, or 4K 60Hz on four independent displays
  • The latest and fastest I/O interfaces, with 2.5Gbps Ethernet and 10Gbps USB3.2 Gen 2 ports
The MIX-TLUD1 industrial Mini-ITX motherboard brings the latest 11th Generation Intel Core U processors to industrial PC applications, offering long-term supply and support with complete revision control. The MIX-TLUD1 offers the latest low-power Intel processors with Iris Xe embedded graphics to power up to four displays at 4K 60Hz simultaneously, making it perfect for digital signage applications.

Tiger Lake for powerful computing

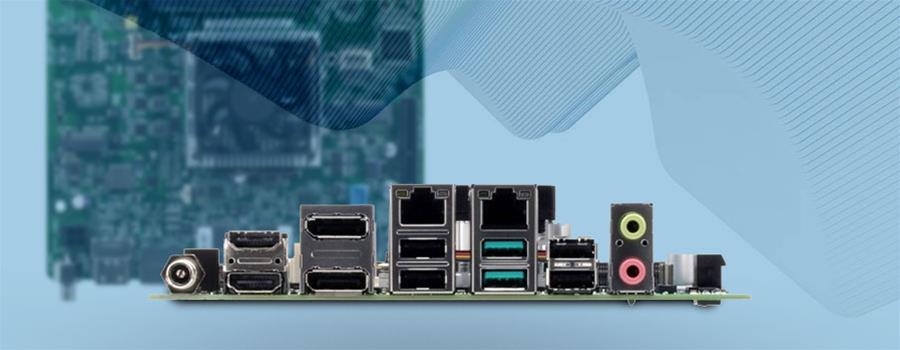

Powered by Intel Tiger Lake processors, the MIX-TLUD1 is ideal for the latest generation of demanding industrial computing applications with support for security features including TPM2.0. The motherboard has two SO-DIMM memory slots supporting up to 64GB DDR4 3200MHz system memory, an M.2 2280 storage slot for NVMe SSDs, and supports four independent displays on the I/O plate with a choice of a combination of two HDMI and two DisplayPort interfaces. Furthermore, the MIX-TLUD1 has flexible I/O and expansion options including one PCIe [x4] slot I/O and DAQ peripheral cards, plus one MiniPCIe slot for an AI module, I/O or wireless expansion. On the rear I/O plate, there is one 2.5Gbps Ethernet port, one 1Gbps Ethernet port, two USB3.2 ports, four USB2.0 ports, while internally on the board there is USB3.2 Gen 1 header, two RS-232 ports, and an 8-bit digital I/O programmable interface.

Hardware monitoring comes as standard on the board, including temperature, voltage, and fan monitoring, helping to keep the board stable and protected during operation. The MIX-TLUD1 also supports the latest Windows 10 64-bit OS along with Linux Ubuntu 64-bit support, both of which can be installed and configured by our in-house System Engineers.

For machine builders and OEMs, the MIX-TLUD1 also comes with onboard LVDS and eDP graphical interfaces for pairing directly to a flat panel LCD display. As part of our Embedded System services, Impulse can offer a complete board to display pairing service including the display of your choice, touch interface, a custom display BIOS, plus interface cables for an all-in-one or modular HMI touch solution.

Our Industrial Computing Capabilities

The MIX-TLUD1 is the latest in a long line of innovative, motherboards from Aaeon Technology, a manufacturing partner we are proud to have worked alongside since 1994. In that time Impulse has worked with Aaeon on hundreds of projects supplying tens of thousands of computer boards to our valued customers for many varied and cutting edge industrial computing applications.

As with all of our industrial computing range, Impulse can fully configure the MIX-TLUD1 Mini-ITX motherboard to your exact specification in our UK based engineering facility, including your choice of memory, storage, peripherals and Microsoft Windows Embedded operating system. We can also integrate the board into any of our rugged embedded chassis to meet your application demands along with any additional requirements you may need, including additional I/O, system comms and power.

With our industrial computing capabilities, we can create reliable, repeatable and revision controlled systems aimed at reducing your overall project costs and development time. With our team of in-house engineers and specialists, all with decades of experience, we can offer you fully deployable industrial computing solutions straight out of the box.

For more details regarding our industrial computing capabilities please click here.
