12 Port Gigabit IEC 64423 Managed Industrial Ethernet Switch 8x Gigabit Ethernet 4x Gigabit Combo Ports 9.6V to 60V DC Redundant Power Input Extended Wide Temperature Operation
12x Gigabit Managed Switch – 8x copper + 4x combo/SFP – IEC 62443 cybersecurity – Turbo Ring/Chain – dual 12/24/48 VDC redundant inputs – DIN-rail – -40 to 75°C
Moxa Products Supplied To the UK, From the UK
As an official UK distributor of Moxa products since 2014, we at Impulse are proud to be affiliated with Moxa Technical College. Our partnership enables us to provide comprehensive in-house training and first-line technical support, and our team of Industrial Internet of Things (IIoT) specialists are fully equipped to guide you through every step of the process. Whether you require assistance with installation, troubleshooting or anything else, our team is ready to assist you.
Technical Support from Impulse
Our commitment doesn't end with the initial setup—we provide lifelong technical support for the entire range of Moxa products at no extra charge. Count on us to ensure that your network operates at its peak performance throughout its entire lifespan.

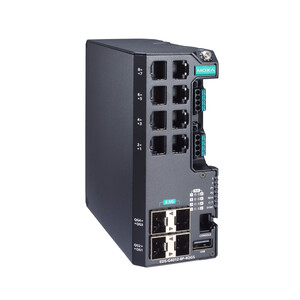

The EDS-G4012-4GC-LV-T is the wide-temperature version of the LV model, supporting operation from -40 to 75°C. It provides 12 full Gigabit ports, with eight copper and four combo (RJ45/SFP) uplinks, ensuring flexible backbone or edge connectivity.
Dual 12/24/48 VDC power inputs provide redundancy to safeguard against supply failures. Housed in a rugged DIN-rail or wall-mountable IP40 enclosure, the switch is built for industrial resilience in outdoor or exposed environments.
Cybersecurity is embedded, with IEC 62443-4-1 and IEC 62443-4-2 compliance, as well as support for IEEE 802.1X, RADIUS/TACACS+, HTTPS, SSH, SNMPv3, and port/MAC security. Resiliency is achieved via Turbo Ring and Turbo Chain (<50 ms recovery at 250 switches) and RSTP/STP protocols.
Traffic management includes VLANs, QoS, IGMP snooping, and LACP link aggregation, supporting predictable and efficient communication. Operators can configure and monitor the switch using web, CLI, Telnet, MXstudio, or ABC-02 backup devices.
With wide-temperature resilience, redundant LV power, and full cybersecurity integration, the EDS-G4012-4GC-LV-T is an excellent choice for utility, transportation, and industrial Ethernet networks operating in harsh conditions.
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Moxa 12 Port Gigabit IEC 64423 Managed Industrial Ethernet Switch 8x Gigabit Ethernet 4x Gigabit Combo Ports 9.6V to 60V DC Redundant Power Input Extended Wide Temperature Operation
Please complete the details below to receive your quote
Select the quantity you wish to request pricing or lead time information for:
EDS-G4012-4GC-LV-T
