Desktop Serial Device Server Series – 8x RS-232 RJ45 ports – Dual Gigabit LAN – Data Encryption with Secure Operation Modes for Real COM, TCP Server, TCP Client, Pair Connection, Terminal, and Reverse Terminal – 12V to 48V DC – -40°C to 75°C
Who We Are
Impulse Embedded is a leading provider of Industrial computing systems and solutions. Our customers rely on us to provide the best embedded computing products and solutions for the challenges presented by today’s industrial demands. Together with our global manufacturing partners we provide world-class innovative embedded computing and automation products and solutions suitable for multiple industrial market sectors.
Not found what you're looking for?
We're only a phone call away. Contact us for more information or for personalised help with your project.
Call: +44 (0)1782 337 800 | Email: sales@impulse-embedded.co.uk

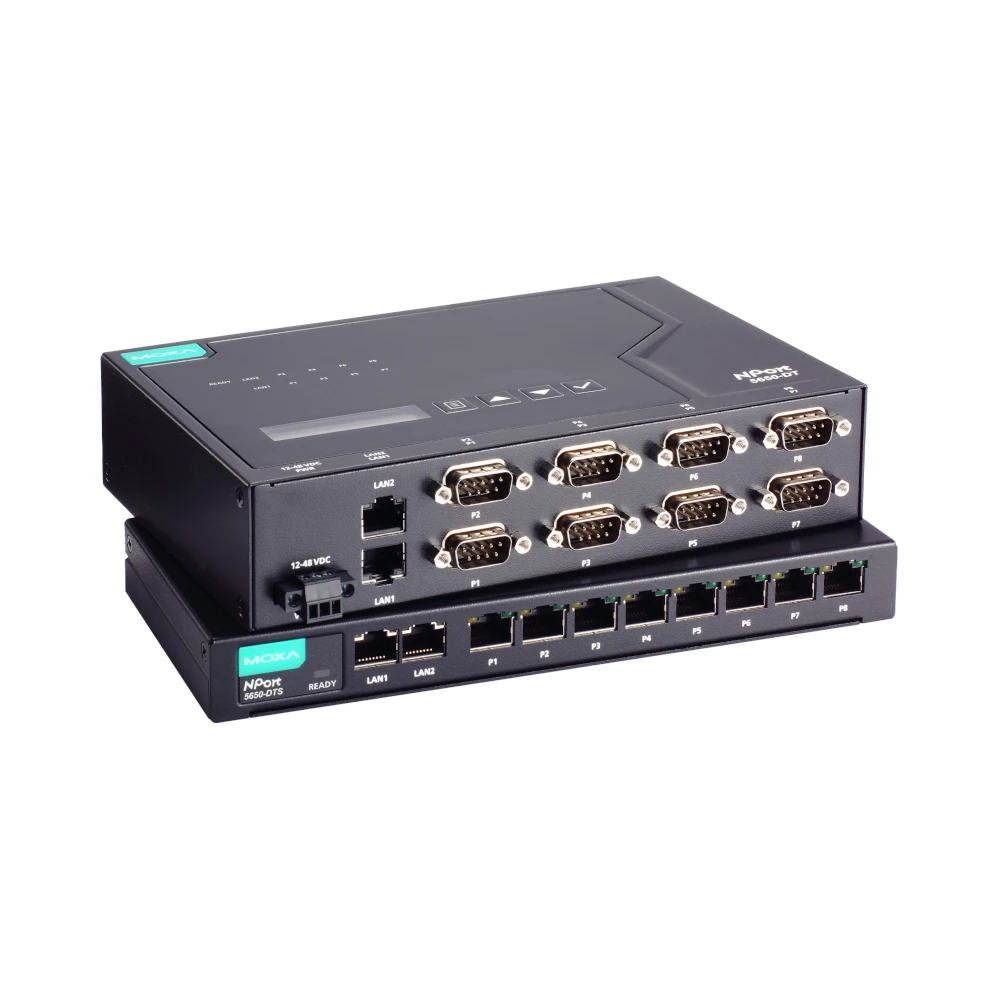

The NPort 5600-DT-G2 Series is a range of compact desktop serial device servers designed to connect multiple RS-232, RS-422 and RS-485 serial devices to an Ethernet network. Built for applications where existing serial equipment needs to be networked without complex configuration, the series allows users to centralise device management while still distributing management hosts across the network. With 8-port and 16-port models available, the range is well suited to industrial automation, building systems, remote equipment management, transport infrastructure, utilities and other applications where dependable serial-to-Ethernet connectivity is required.
Each model includes two 10/100/1000BaseT Ethernet ports with auto MDI/MDI-X support and 1.5 kV built-in magnetic isolation protection. The range supports a wide selection of serial operating modes, including Real COM, TCP Client, TCP Server, UDP, RFC2217 and Pair Connection, as well as secure operation modes for encrypted communication. This makes the NPort 5600-DT-G2 Series suitable for both traditional serial networking and more security-conscious deployments where serial data must be protected across private or public networks.
Security and maintenance are key strengths of the platform. Secure Boot helps ensure that only authorised firmware runs on the device, while support for HTTPS, SNMPv3, role-based access control, encryption and certificate signing provides a stronger foundation for secure industrial networking. For troubleshooting, one-click log collection and application analysis help system integrators and maintenance teams identify communication issues more quickly.
The range supports standard models from -10°C to 60°C and wide-temperature models from -40°C to 75°C. With metal housing, desktop installation, wall mounting and optional DIN-rail mounting, the NPort 5600-DT-G2 Series provides a flexible and robust way to bring legacy serial devices onto modern Ethernet networks.
Compare Model Specifications
Delivery & Returns
We offer a range of delivery options to suit your needs.
UK Mainland
Northern Ireland & Highlands
Ireland
RMA
In order to process returned goods, Impulse Embedded Limited uses an internal RMA system. Before returning goods for any reason, please contact Impulse Embedded Limited (returns@impulse-embedded.co.uk) to request an RMA number. Please confirm the reason for the return of the goods, providing the Serial Number, Product Code, and Impulse Embedded Limited Invoice Number (if known).
When returning goods, please ensure they are suitably packed so as to avoid damage, are in the original packaging, along with all accessories, with the outer packaging marked with the RMA number. It is recommended that you use a signed delivery service, as goods lost in transit are not the responsibility of Impulse Embedded Limited.
Please do not write the RMA number on the goods or on the original packaging. Impulse Embedded Limited may refuse returned goods and return them if they arrive without an RMA number, or not in the original packaging.
Add to a quote list
Moxa 8/16 Port RS-232/422/485 Compact Desktop Serial Device Servers
Please complete the details below to receive your quote
Select the products of this series that you wish to request quantity or project pricing, or lead time information for:
NPort 5610-8-DT-G2
8 Port RS-232 Compact Desktop Serial Device Servers
NPort 5610-8-DT-G2-T
8 Port RS-232 Compact Desktop Serial Device Servers – Wide Temperature
NPort 5650-8-DT-G2
8 Port RS-232/422/485 Compact Desktop Serial Device Servers
NPort 5650-8-DT-G2-T
8 Port RS-232/422/485 Compact Desktop Serial Device Servers – Wide Temperature
NPort 5650I-8-DT-G2
8 Port RS-232/422/485 Isolated Compact Desktop Serial Device Servers
NPort 5650I-8-DT-G2-T
8 Port RS-232/422/485 Isolated Compact Desktop Serial Device Servers – Wide Temperature
NPort 5610-16-DT-J-G2
16 Port RS-232 Compact Desktop Serial Device Servers
NPort 5610-16-DT-J-G2-T
16 Port RS-232 Compact Desktop Serial Device Servers – Wide Temperature
NPort 5650-16-DT-J-G2
16 Port RS-232/422/485 Compact Desktop Serial Device Servers
NPort 5650-16-DT-J-G2-T
16 Port RS-232/422/485 Compact Desktop Serial Device Servers – Wide Temperature
NPort 5610-8-DTS-J-G2
8 Port RS-232 Compact Desktop Serial Device Servers – RJ45 Connectors
NPort 5610-8-DTS-J-G2-T
8 Port RS-232 Compact Desktop Serial Device Servers – RJ45 Connectors – Wide Temperature
NPort 5650-8-DTS-J-G2
8 Port RS-232/422/485 Compact Desktop Serial Device Servers – RJ45 Connectors
NPort 5650-8-DTS-J-G2-T
8 Port RS-232/422/485 Compact Desktop Serial Device Servers – RJ45 Connectors – Wide Temperature
